Solar Panel Mesh Clips

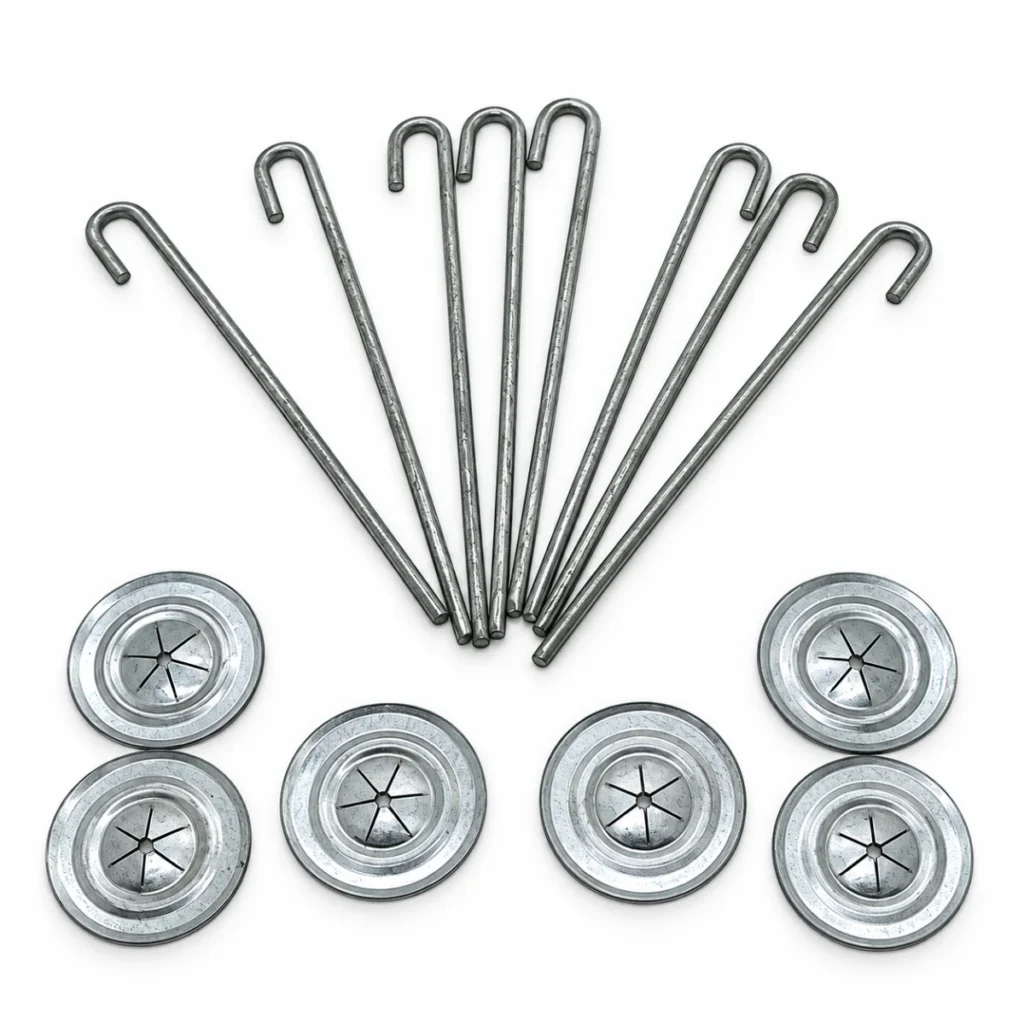

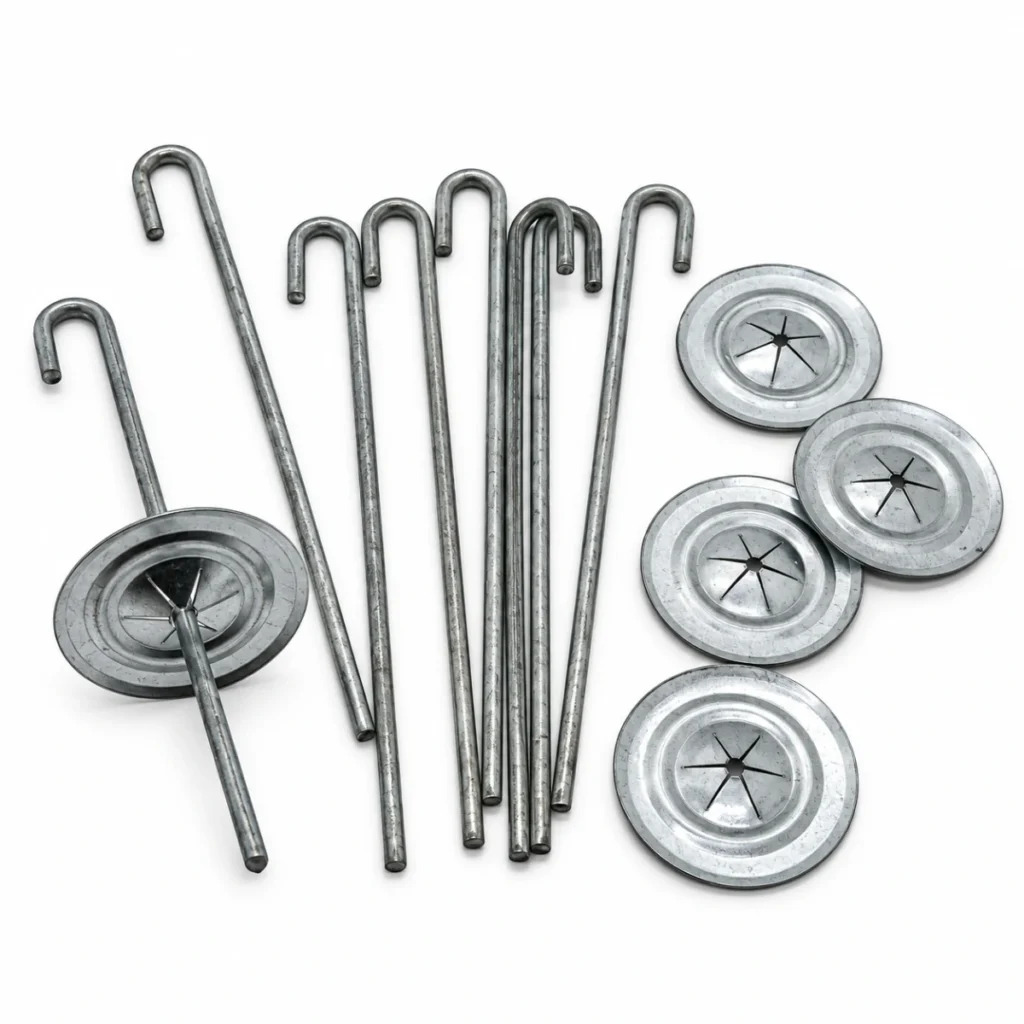

J-shaped clips with matching 30 mm black washers for fixing bird-proofing mesh to solar panel frames.

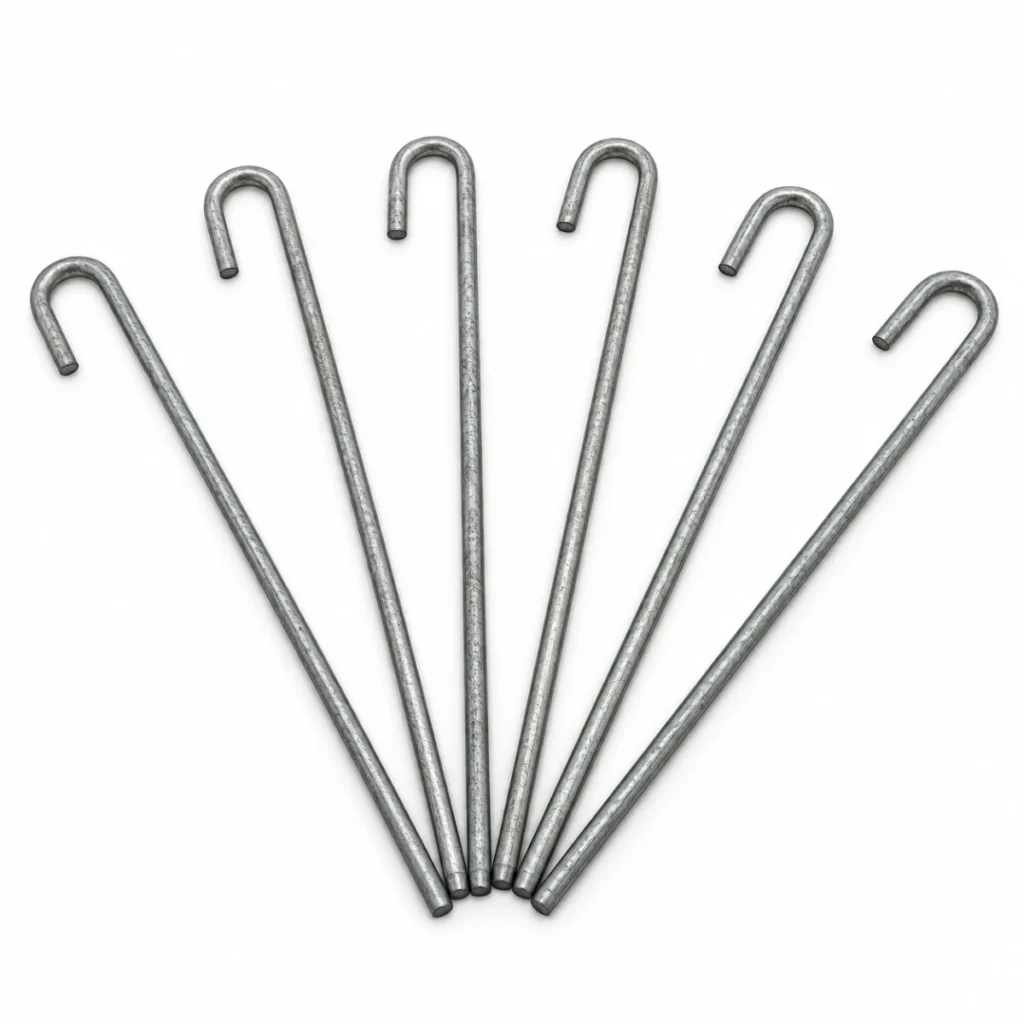

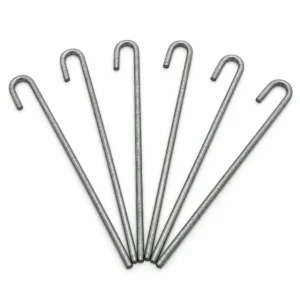

The hook fits onto the solar panel frame and a self-locking washer holds the mesh on the clip. Choose SS304 or galvanized steel clips with a common 2.7 mm wire diameter and 120 mm length excluding the hook. All dimensions can be customised. Mesh kits of this kind are also sold as solar panel critter guards.
- Wire diameter
- 2.7 mm
- Length excluding hook
- 120 mm
- Washer diameter
- 30 mm
Share your required specification and quantity for a quotation.
Materials & dimensions
Solar panel mesh clip
specifications.

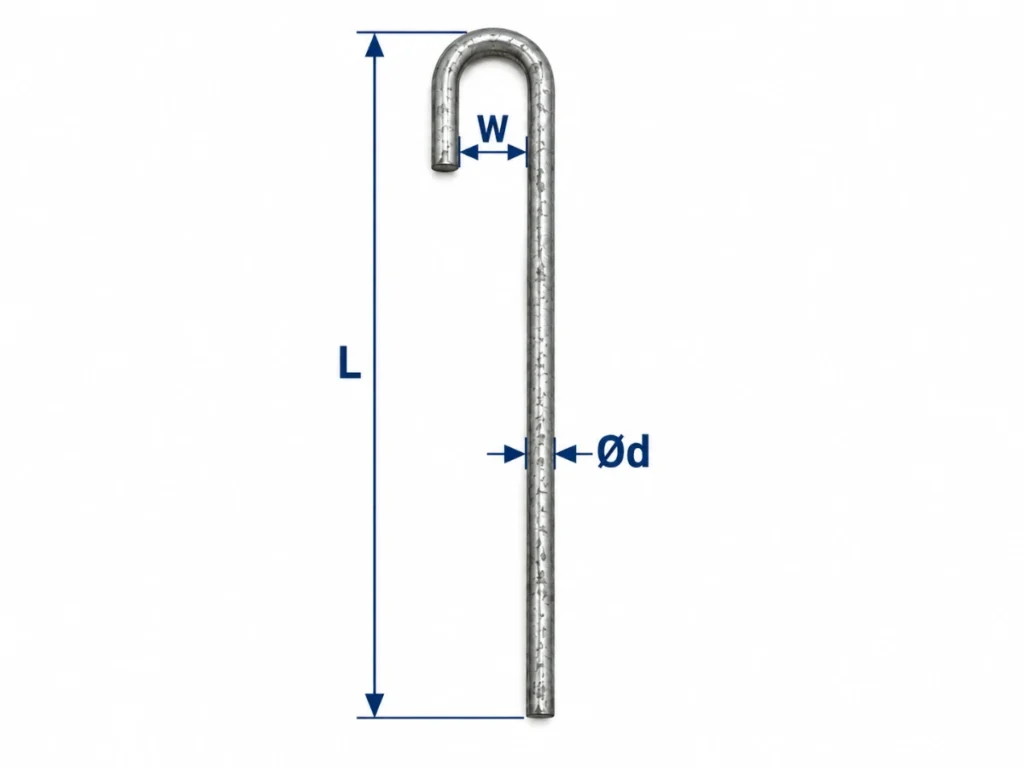

The common clip has a 2.7 mm diameter, 120 mm length excluding the hook, 12 mm hook length and 9 mm hook height. All dimensions can be customised.
Solar Panel Mesh Clips specifications
| Clip design | J-shaped |
|---|---|
| Wire diameter | 2.7 mm |
| Length excluding hook | 120 mm |
| Hook length | 12 mm |
| Hook height | 9 mm |
| Custom dimensions | All dimensions can be customised |
| Clip materials | SS304 / Galvanized steel |
| Matching washer | 30 mm round galvanized steel (GI) Black surface finish. |
| Washer supply | With clips or separately |
Matching components
Fixing bird-proofing mesh
to solar panels.
Solar mesh clips fix bird-proofing mesh around the edges of rooftop solar panels, keeping birds, rodents and debris out from under the array without drilling into the panels.

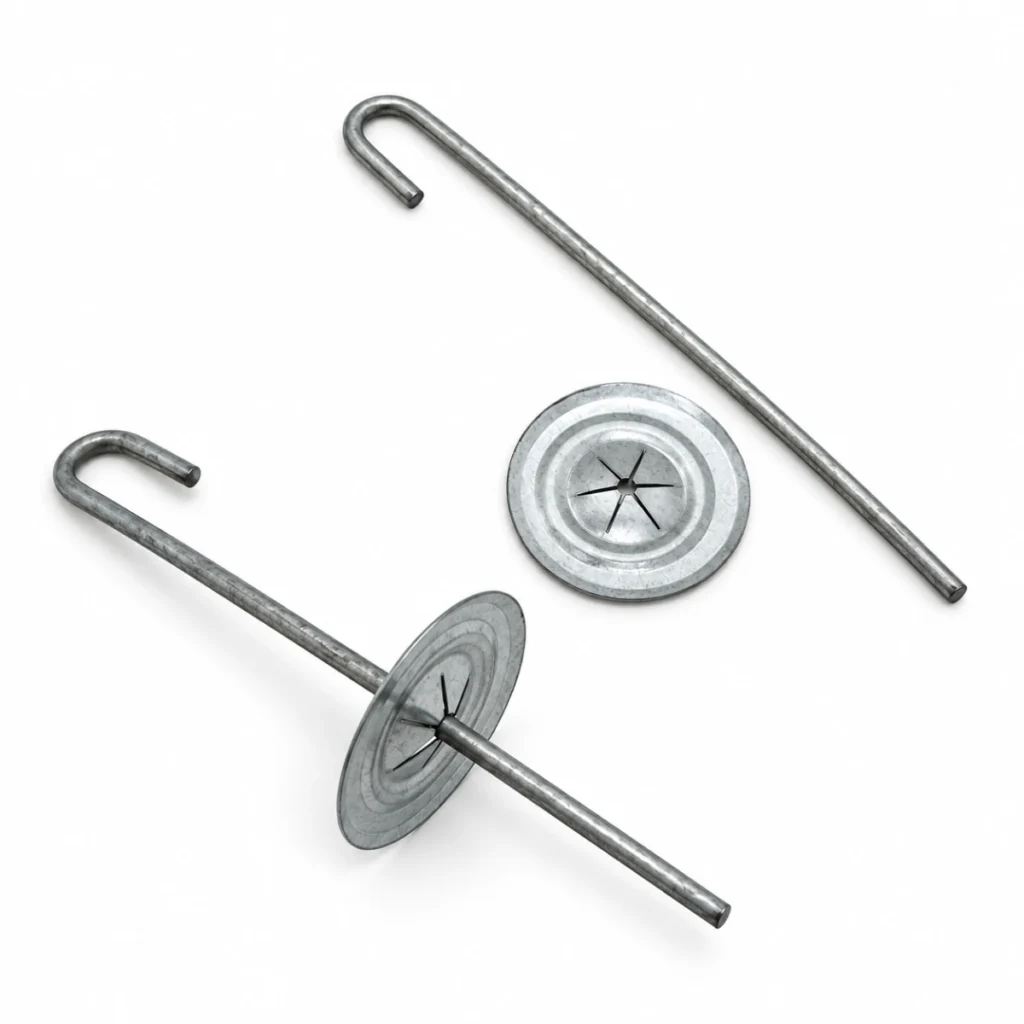

The J-shaped clip is paired with a 30 mm round galvanized steel (GI) self-locking washer with a black surface finish. Washers can be supplied with the clips or separately.
Provide the dimensions of the fixing position and any custom clip dimensions. Match the washer hole size to the selected clip diameter.
Discuss clip matching ↗Before you order
Solar panel mesh clip FAQs.
Share your specification, quantity and any matching or dimensional requirements.
What are solar mesh clips used for?
Fixing bird-proofing mesh to solar panel frames. The J-shaped hook fits onto the frame, and a 30 mm self-locking washer holds the mesh on the clip.
Which washer is paired with this clip?
A 30 mm diameter black self-locking washer is the specified pairing. Confirm the hole size for the selected clip.
Can the clip length be customised?
Yes. Clip length can be customised. Provide the required dimensions or a drawing for confirmation.
Which materials are available?
SS304 stainless steel and galvanized steel.
What should I include in an enquiry?
Include the clip size, material, hook dimensions and quantity. Provide the fixing-position dimensions or a drawing to help confirm the fit.
