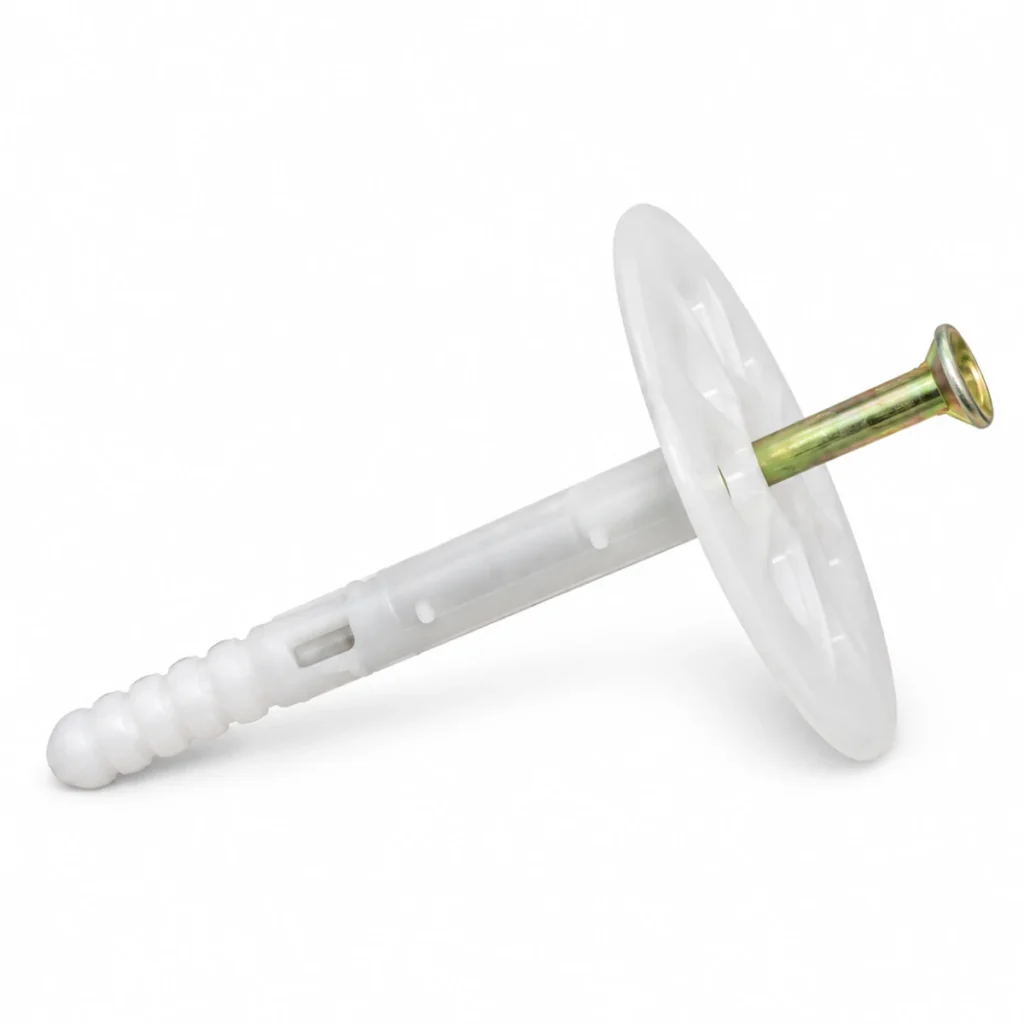

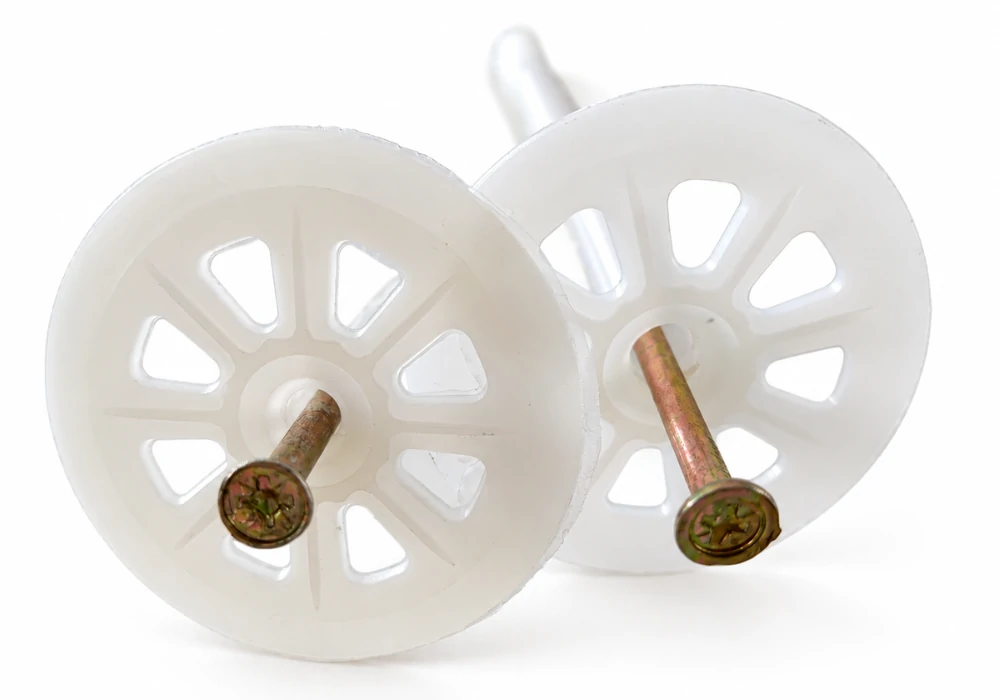

Hammer-in anchors
Hammer-in type; specify the required anchor length.

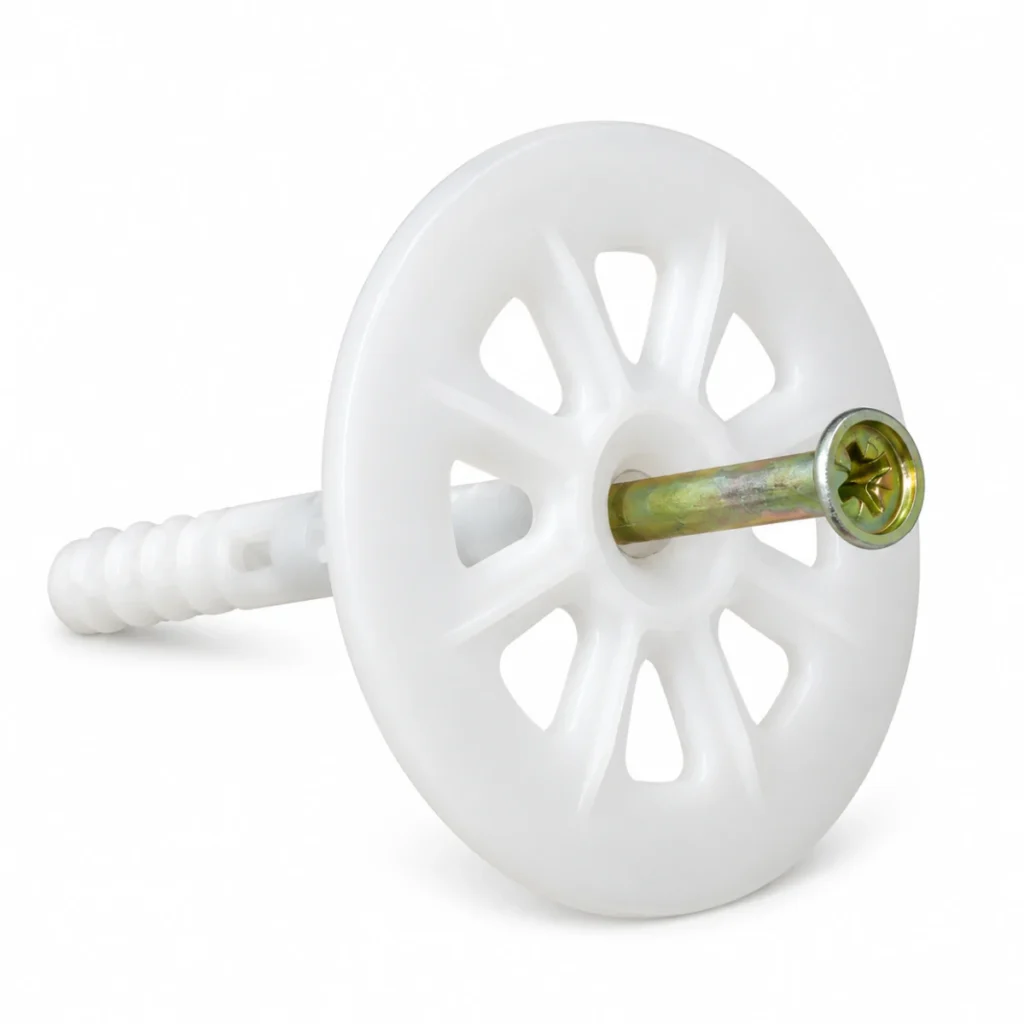

Plastic Insulation Anchors
Choose plastic hammer-in or screw-in insulation anchors with the length your specification requires.
Plastic anchors with a 60 mm disc and an 8 mm or 10 mm expansion sleeve. Specify the installation type, required length and substrate for order review. In the UK these are usually called insulation fixings, used to hold boards in external wall insulation (ETICS) systems.
- Disc diameter
- 60 mm
- Sleeve diameter
- 8 / 10 mm
- Common lengths
- 60 / 80 / 100 / 140 / 160 / 180 mm
Share your required specification and quantity for a quotation.
Materials & dimensions
Plastic insulation anchor
specifications.

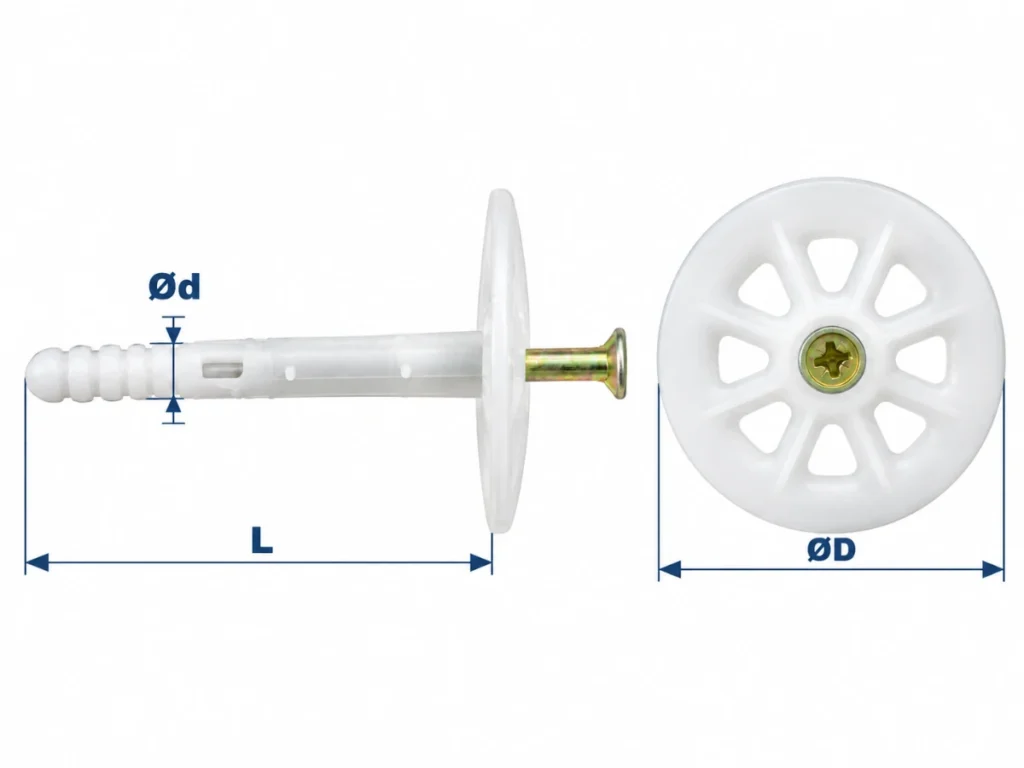

Both installation types use a 60 mm disc and offer 8 mm or 10 mm expansion sleeves. Select the length and body material for the specified wall substrate.
Plastic Insulation Anchors specifications
| Installation types | Hammer-in / Screw-in |
|---|---|
| Plastic body materials | Polyamide (PA6 / nylon) / Polypropylene (PP) |
| Nail material | Carbon steel |

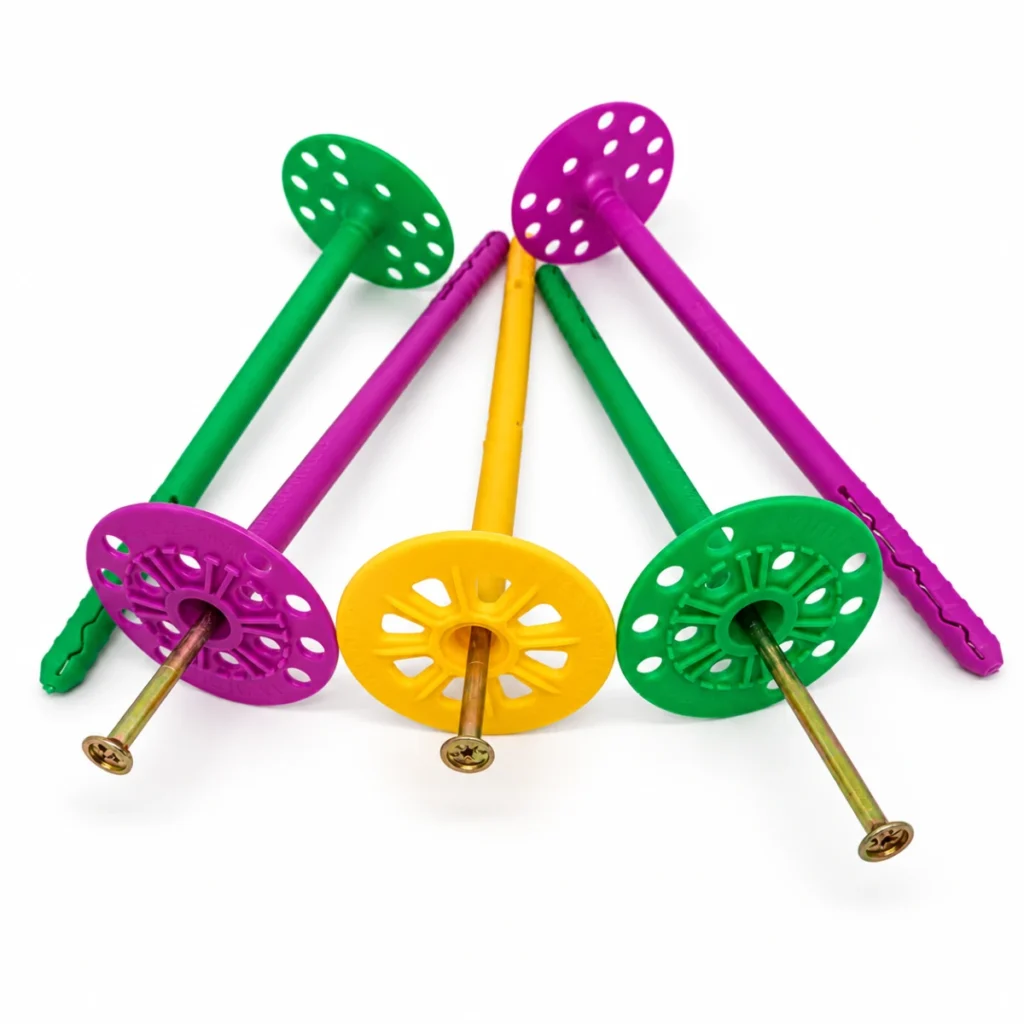

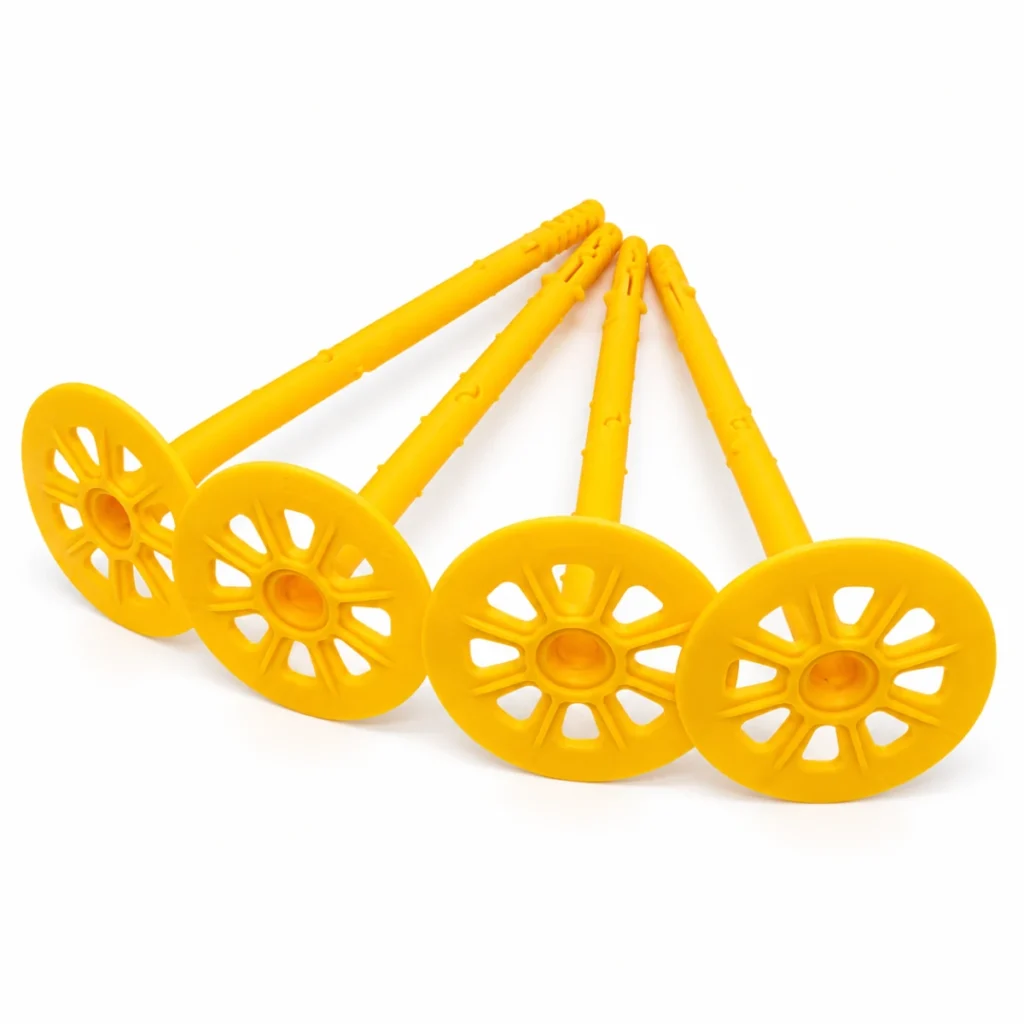

| Colour | White Standard colour, available in every size. Yellow, green or purple can be made for larger orders. |
| Disc diameter | 60 mm Both types. |
| Expansion sleeve diameter | 8 / 10 mm |
| Common lengths | 60 / 80 / 100 / 140 / 160 / 180 mm Both types. |
| Other lengths | Customised to requirements |
| Effective anchorage depth | Generally 50 mm Confirm the installation requirements for the selected anchor and substrate. |
| Drill-hole diameter | 8 / 10 mm Match the selected expansion sleeve diameter. |
Product details
Hammer-in or
screw-in anchors.
Choose the required installation type and provide the anchor dimensions for confirmation.

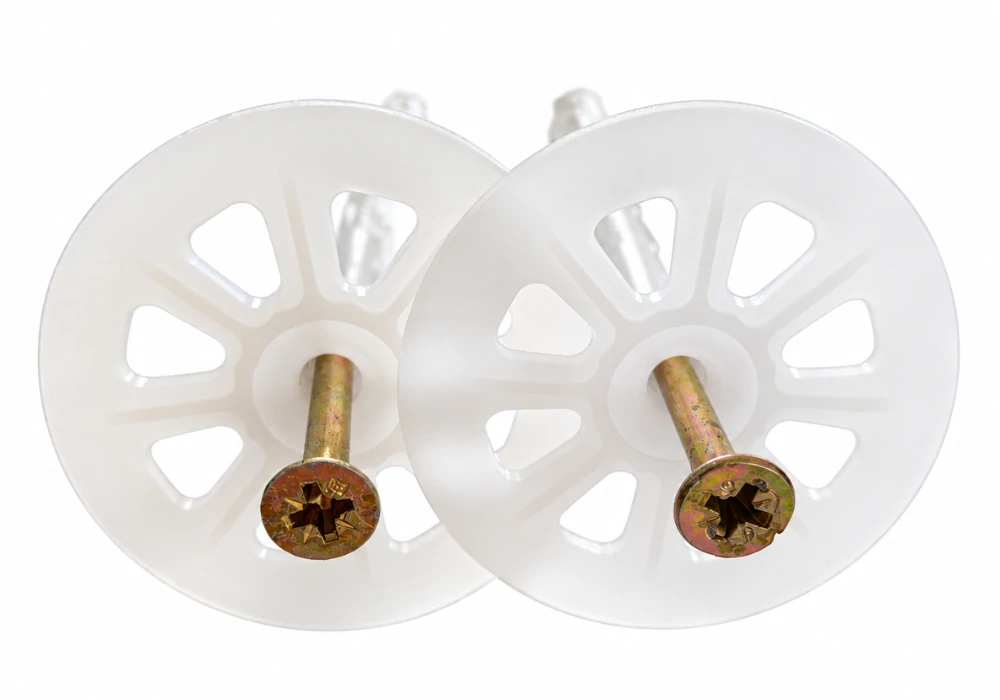

Screw-in anchors
Screw-in type; specify the required anchor length.
Matching components
Plastic or metal anchors
by wall substrate.
Plastic insulation anchors fix insulation boards to external walls in building insulation systems. Metal insulation anchors are installed the same way; plastic or metal is chosen to suit the project's requirements.
Provide the wall substrate, insulation thickness and sleeve diameter so the anchor length can be confirmed.
Discuss anchor requirements ↗
Metal Insulation Anchors
The metal alternative, installed the same way.
View product ↗
Rock Wool Boards & Strips
Insulation boards that can be fixed to external walls with these anchors.
View product ↗Before you order
Plastic insulation anchor FAQs.
Share your specification, quantity and any matching or dimensional requirements.
Which installation types are available?
Hammer-in and screw-in types are listed. Specify the type required for your order.
What are the common dimensions?
A 60 mm disc with an 8 mm or 10 mm expansion sleeve. Common lengths are 60, 80, 100, 140, 160 and 180 mm.
Can the length be customised?
Yes. Length can be customised. Provide the required length and installation type for confirmation.
Which colours are available?
White is the standard colour and is available in every size. Yellow, green or purple can be made for larger orders.
What should I include in an enquiry?
Include the installation type, anchor length, disc and sleeve diameters, substrate and quantity. Add insulation thickness and a drawing if available.
