Square Base Geometry
50 × 50 mm square base, 0.5 mm thick, with openings for the pin adhesive.

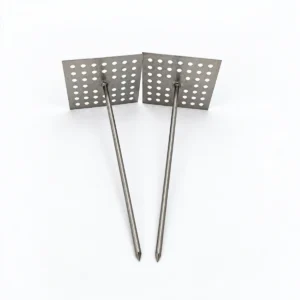

Stainless Steel Perforated Base Pins
Specify a stainless steel insulation pin with a perforated square base for the required bonding or embedding system.
Available in SS304 and SS316, the square base includes openings that allow the specified adhesive, mastic or embedding material to engage with the mounting plate. Confirm the stainless steel grade, pin dimensions, base size and installation method for the application.
- Diameter
- 2.7 / 3 mm
- Length
- 19–500 mm
- Square base size
- 50 × 50 × 0.5 mm
Quotation is based on the confirmed stainless steel grade, pin and base dimensions, fixing method and quantity.
Materials & dimensions
Stainless steel perforated
base pin specifications.
Confirm SS304 or SS316 together with the pin diameter, pin length and square base dimensions. Share the mounting surface, insulation thickness and intended bonding or embedding method so the complete specification can be reviewed before quotation.
Specifications
| Stainless steel grade | SS304 / SS316 |
|---|---|
| Diameter | 2.7 / 3 mm common; 3.4 / 4 mm custom |
| Length | 19–500 mm |
| Base Shape | Square |
| Square base dimensions | 50 × 50 mm |
| Base Thickness | 0.5 mm |
| Common pin lengths | 50 / 63 / 110 / 114 / 419 mm |
Product details

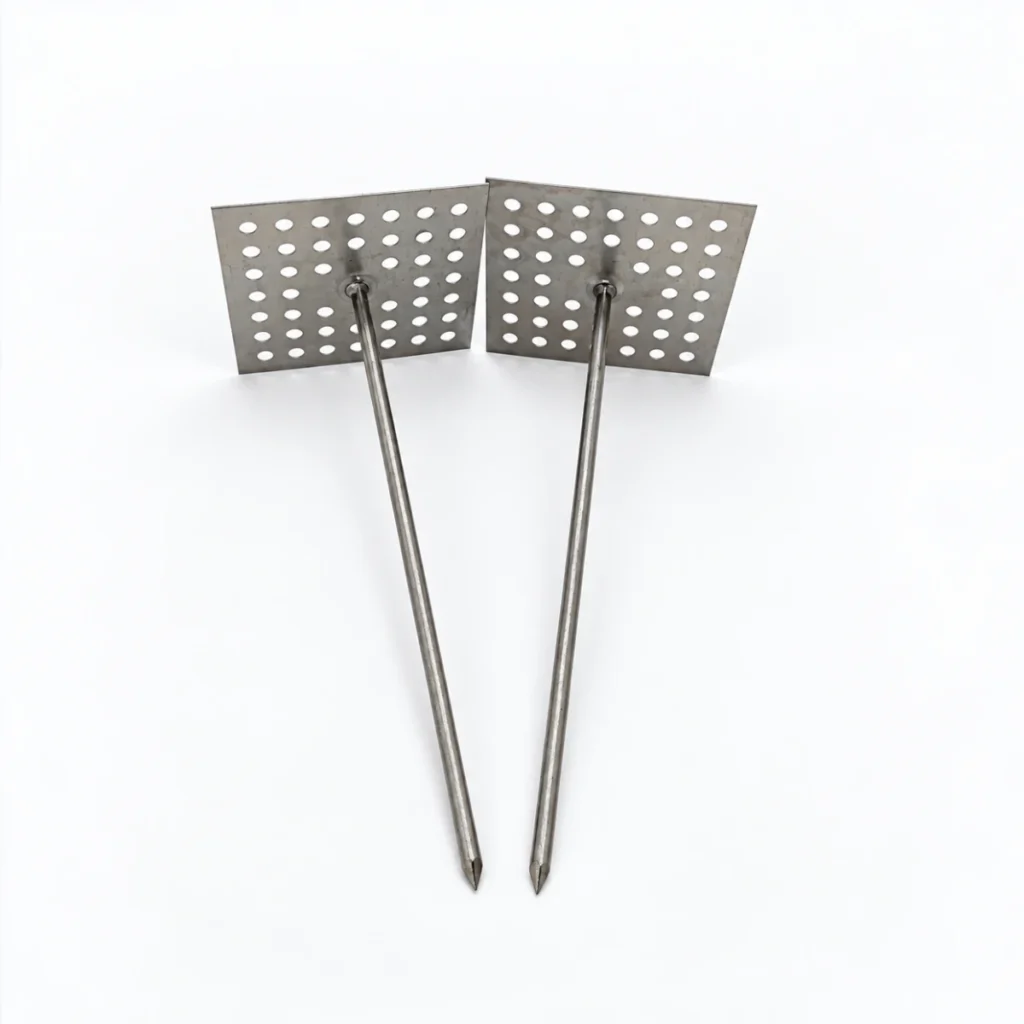

Square perforated base
and pin connection.
The perforated square base provides a defined mounting area around the pin. Its openings allow the specified bonding or embedding material to pass through or around the plate as part of the fixing system.
Pin-to-base Connection
Confirm the connection method, joint geometry and whether the pin and base use the same stainless steel grade.
Holding strength depends on the complete combination of base, adhesive and substrate, so no fixed load value is stated. Confirm the combination for your project.
Compatibility
Bonding stainless steel
perforated base pins.
Perforated square base pins form part of a complete fixing method. Performance depends on the stainless steel grade, base geometry, bonding or embedding material, mounting surface, insulation and installation conditions.
These pins are fixed with a dedicated pin adhesive, not welded. IFS supplies the pins only: the adhesive is sourced separately and must be compatible with both the stainless steel base and the substrate. Surface preparation, coverage, application thickness, pressure and setting time should follow the adhesive manufacturer's instructions.
Self Locking Insulation Washers
Choose round or square washers with the material, thickness and hole size your pins require.
View product ↗
Dome Caps
Choose dome caps in 30 or 32 mm diameters for matching 3 mm insulation pins.
View product ↗
Perforated & Mesh Base Pins
Choose a perforated or mesh base pin for insulation fixing systems that require the bonding material to engage with the base.
View product ↗
Order planning
Stainless steel base pin
lead time and packing.
- Standard specifications Per order
- Depends on order quantity and the production schedule; confirmed with your quotation.
- Custom specifications Per order
- Depends on order quantity and the production schedule; confirmed with your quotation.
SS304 and SS316 products should be identified clearly when both grades are included in the same shipment.
Lead times, documentation and packing details are confirmed with the quotation and order.
Before you order
Stainless steel base pin FAQs.
Share your specification, quantity and any welding or documentation requirements.
Which stainless steel grades are available?
SS304 and SS316, normally with the base and pin in the same grade.
What sizes are available?
Pin diameters of 2.7 and 3 mm as standard, with 3.4 and 4 mm made to order, in lengths from 19 to 500 mm on a 50 × 50 × 0.5 mm base. Common lengths are 50, 63, 110, 114 and 419 mm.
Are these pins welded?
No. They are fixed with a dedicated pin adhesive. IFS supplies the pins only; the adhesive is sourced separately.
When should I choose stainless steel pins?
When the project specifies stainless steel or the installation needs corrosion resistance. SS316 is commonly chosen for more corrosive environments.
What should I include in an enquiry?
Include the grade, pin diameter, length, mounting surface, adhesive system and quantity.
