Refractory Anchors
Specify refractory anchors by shape, material and drawing for your required dimensions.

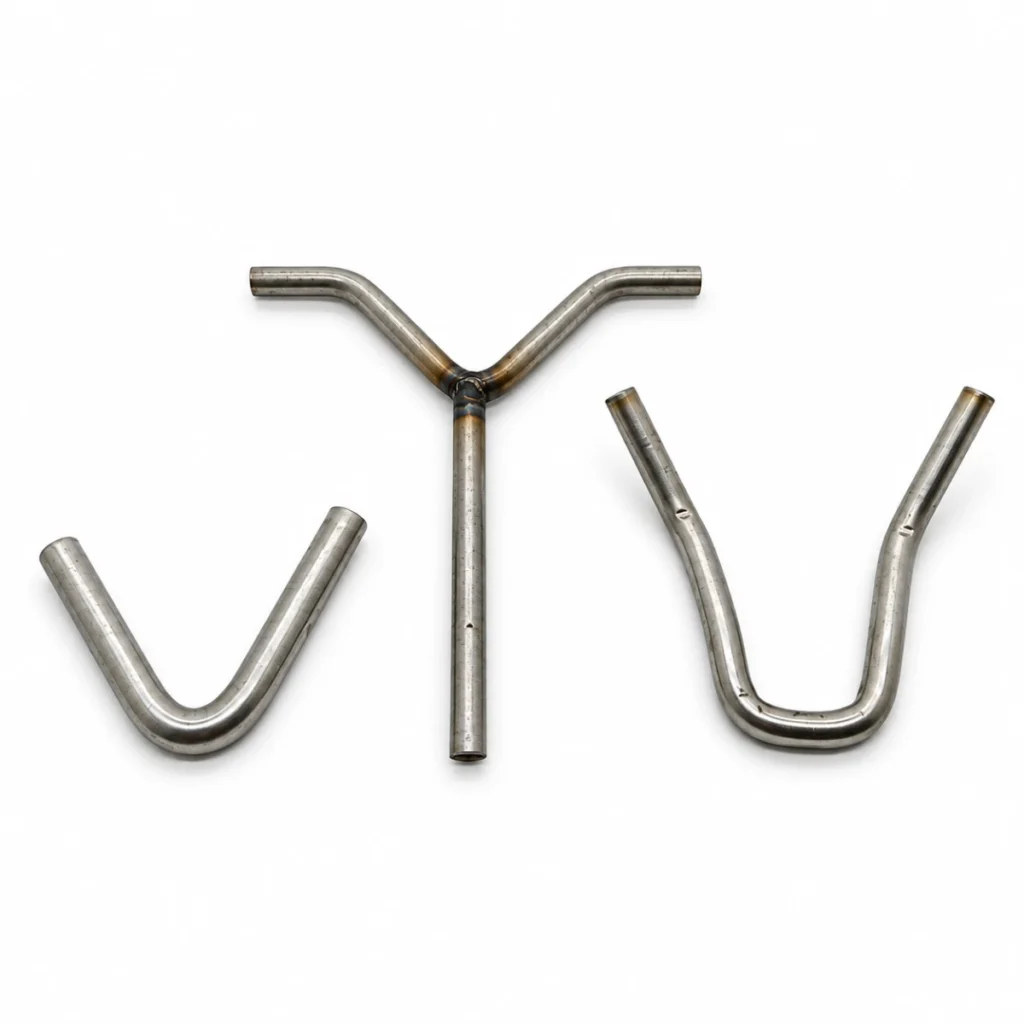

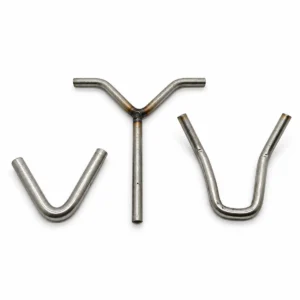

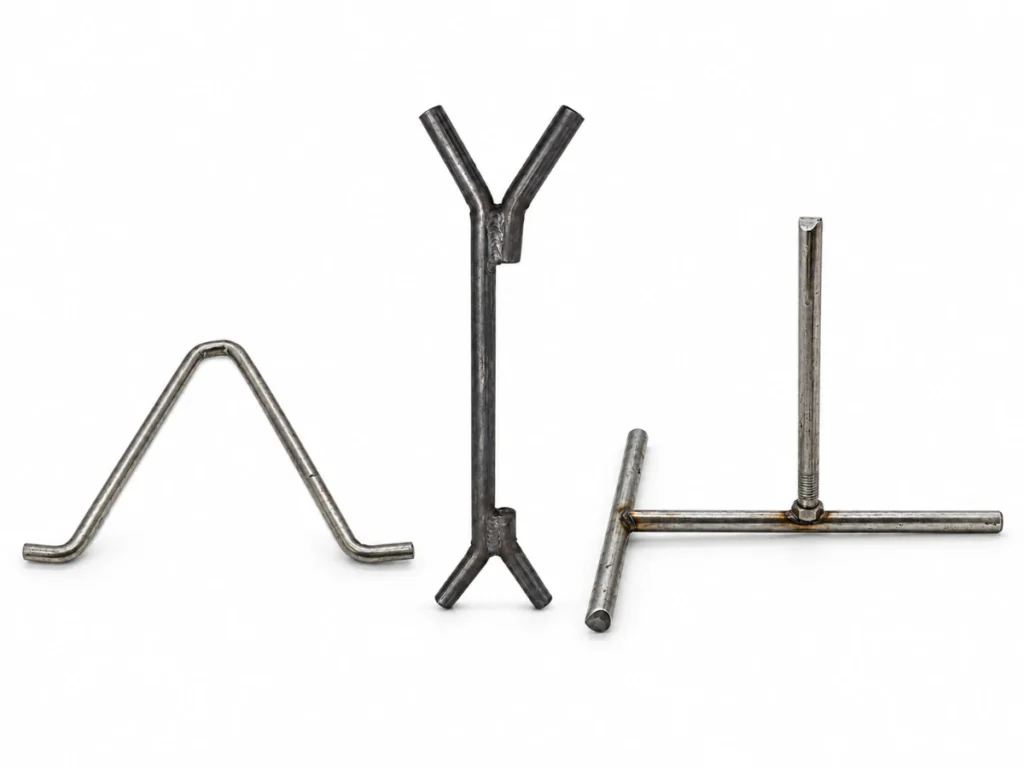

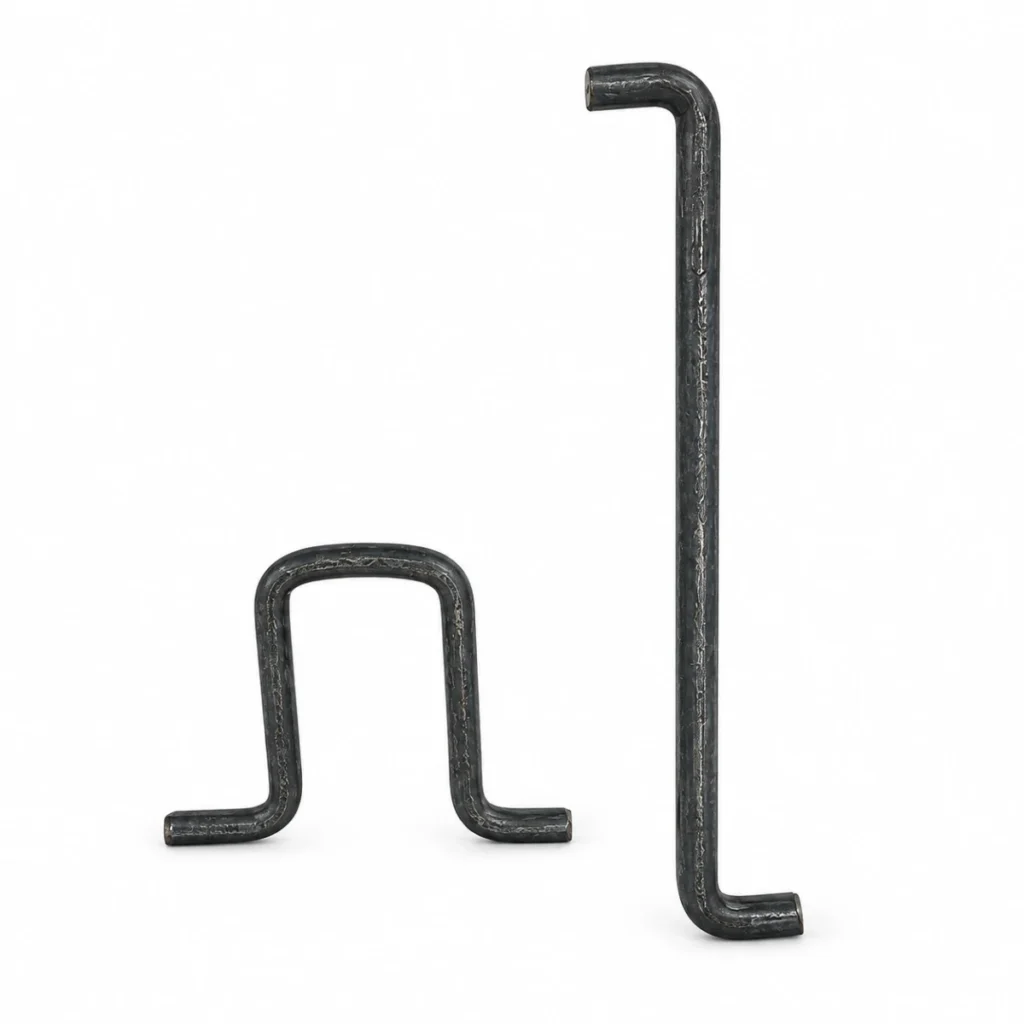

Made to drawings rather than fixed standard models, in V, Y, Z and U shapes. Send the required grade, dimensions and quantity for review.
- Shapes
- V / Y / Z / U
- Wire diameter
- 3–12 mm
Share your required specification and quantity for a quotation.
Materials & dimensions
Refractory anchor
specifications.
Specify the shape, dimensions and material on your drawing. The available wire diameter range is 3–12 mm; other materials can be customised.
Refractory Anchors specifications
| Supply format | Made to drawing No fixed standard models. |
|---|---|

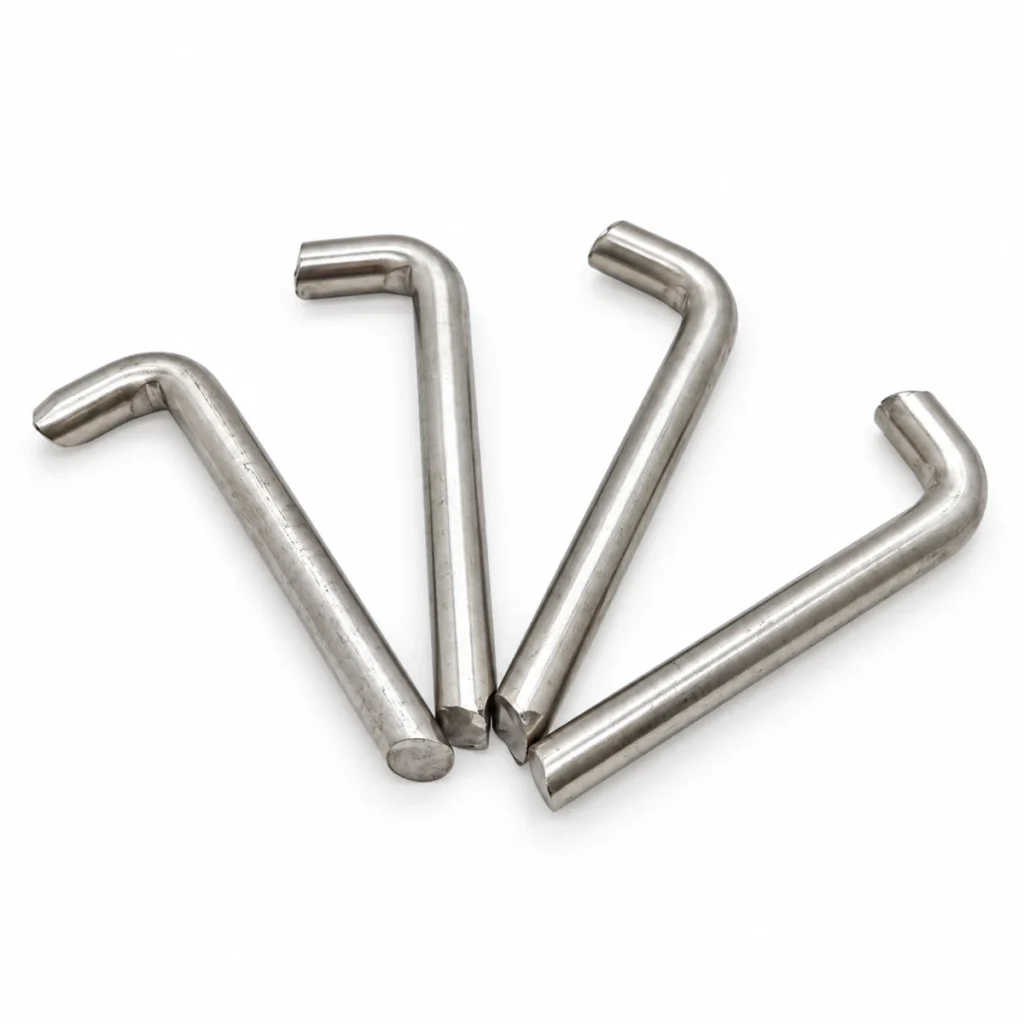

| Shape options | V / Y / Z / U L-shaped anchors can also be made. |
| Stainless steel grades | 304 / 316 / 316L / 310S |
| Wire diameter | 3–12 mm |
| Dimensions | To drawing Specify lengths and bend geometry. |
| End caps | Plastic caps on Y anchors Burn off in service to leave a thermal expansion gap. |
Matching components
Refractory anchors
for lining systems.
Refractory anchors can be discussed alongside ceramic fiber products for the required fixing arrangement.
Send the anchor drawing and lining details, including the required material grade and service conditions. The anchor design and material selection need to be confirmed for the order.
Discuss anchor requirements ↗Before you order
Refractory anchor FAQs.
Share your specification, quantity and any matching or dimensional requirements.
Are these standard catalogue models?
No. Refractory anchors are made to drawings rather than fixed standard models. Send the required shape and dimensions for review.
Which shapes can I specify?
V, Y, Z and U shapes are available. Provide a drawing to define the dimensions and bend geometry.

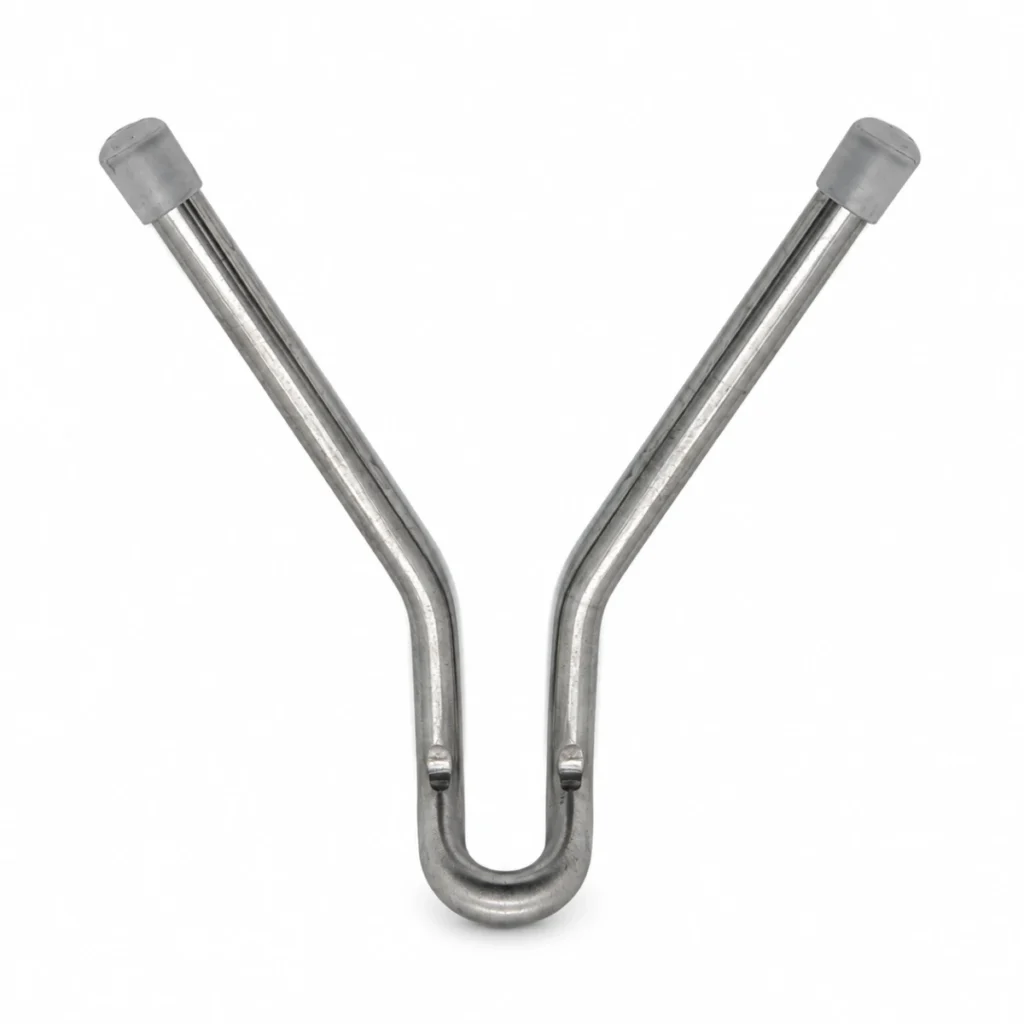

What are the plastic caps on Y anchors for?
Mainly to leave a thermal expansion gap. The metal anchor expands more than the refractory castable; in service the caps burn away, leaving room so the anchor does not crack, bulge or loosen the lining. During casting they also set how deep the anchor sits, and on site they cover the sharp tips and keep castable off the ends.
What should I include in an enquiry?
Include the drawing, material grade, wire diameter, dimensions and quantity. Add lining details and service conditions for the intended installation.
