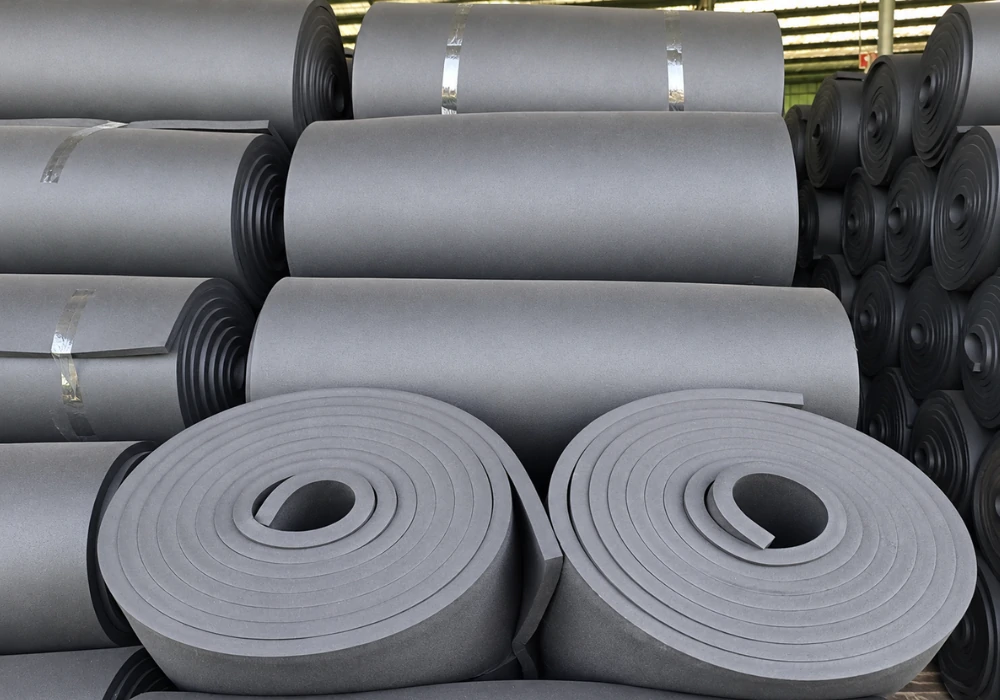

Standard rolls
Cut to size and bonded with a suitable adhesive.

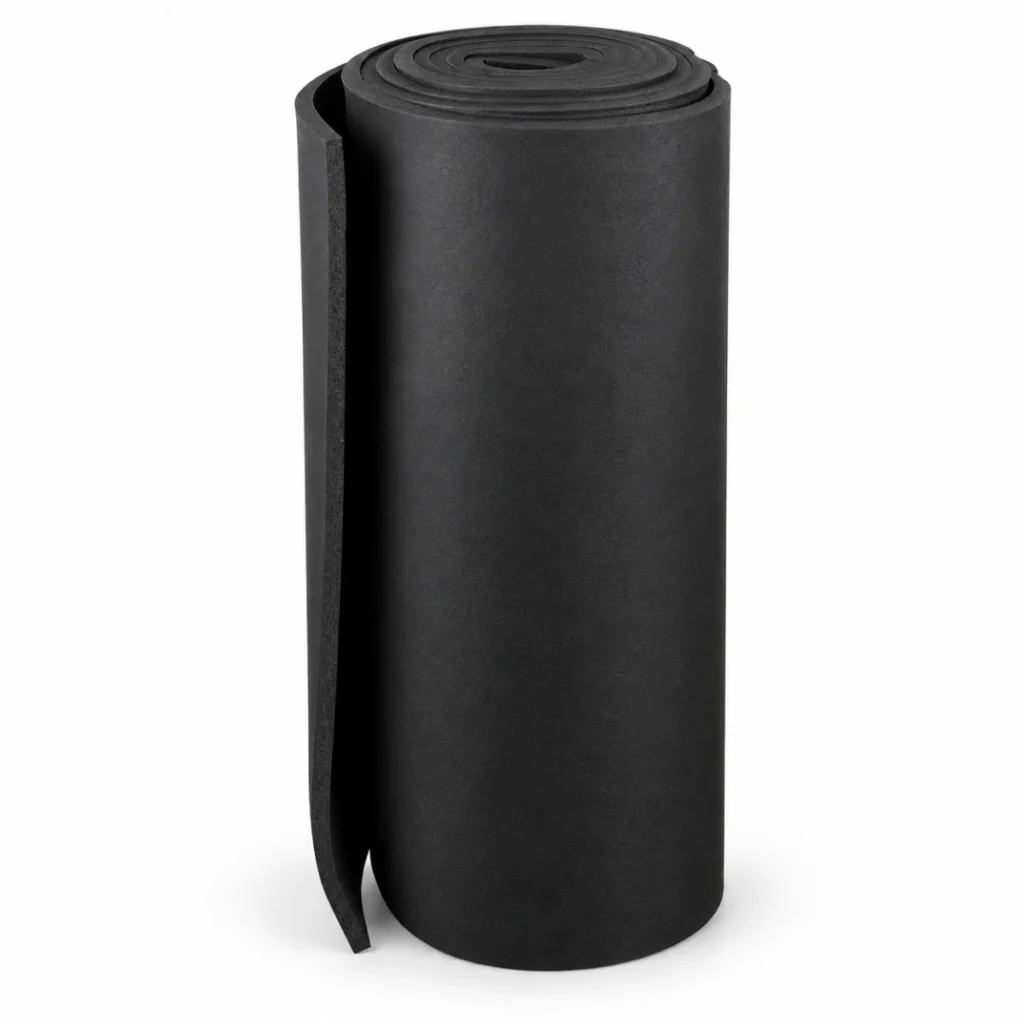

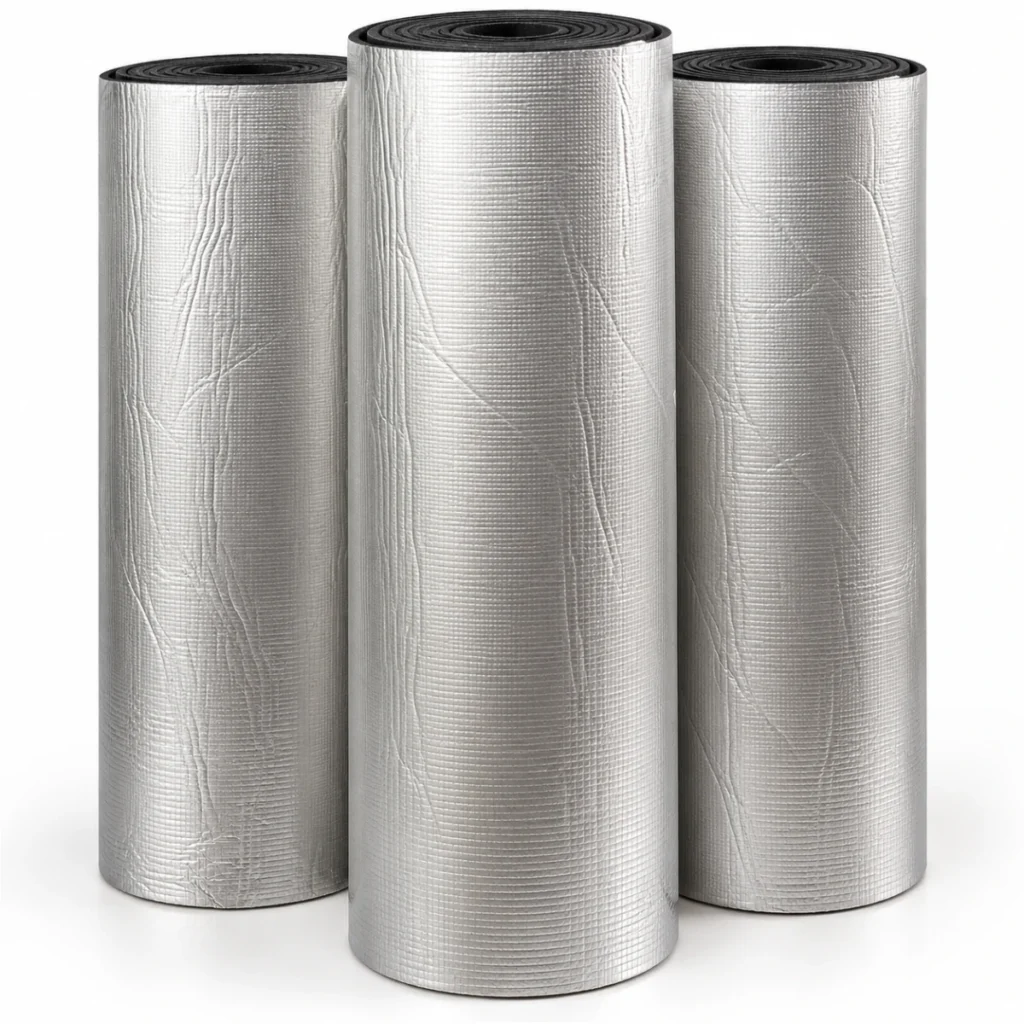

Rubber Foam Insulation Rolls
Black NBR/PVC rubber foam rolls, 6–50 mm thick, in standard or self-adhesive types with optional aluminium foil.
Flexible closed-cell rubber foam (elastomeric foam) insulation for HVAC ductwork, pipe insulation and equipment, supplied as continuous rolls to cut on site. All dimensions can be made to order.
- Thickness
- 6–50 mm
- Width
- 1 / 1.2 m
- Roll length
- 4–30 m
All dimensions can be made to order. Share your specification and quantity for a quotation.
Product specifications
Rubber foam roll
specifications.
Thicker rolls are shorter, so roll length runs from 4–30 m depending on thickness. Every dimension can be made to order.
Rubber Foam Insulation Rolls specifications
| Material | NBR / PVC based rubber foam |
|---|---|
| Cell structure | Closed-cell foam |
| Colour | Black |
| Thickness | 6–50 mm |
| Width | 1 m / 1.2 m |
| Roll length | 4–30 m Thicker rolls are shorter. |
| Coverage per roll | 4–36 m² Depends on thickness and width. |
| Types | Standard / Self-adhesive |
| Self-adhesive backing | Acrylic pressure-sensitive adhesive With a release liner. |
| Facing | Aluminium foil option Available on both types. |
| Custom dimensions | All dimensions can be made to order |
Roll types
Standard or
self-adhesive rolls.
Choose how the roll is bonded on site. Both types can be supplied with aluminium foil facing.

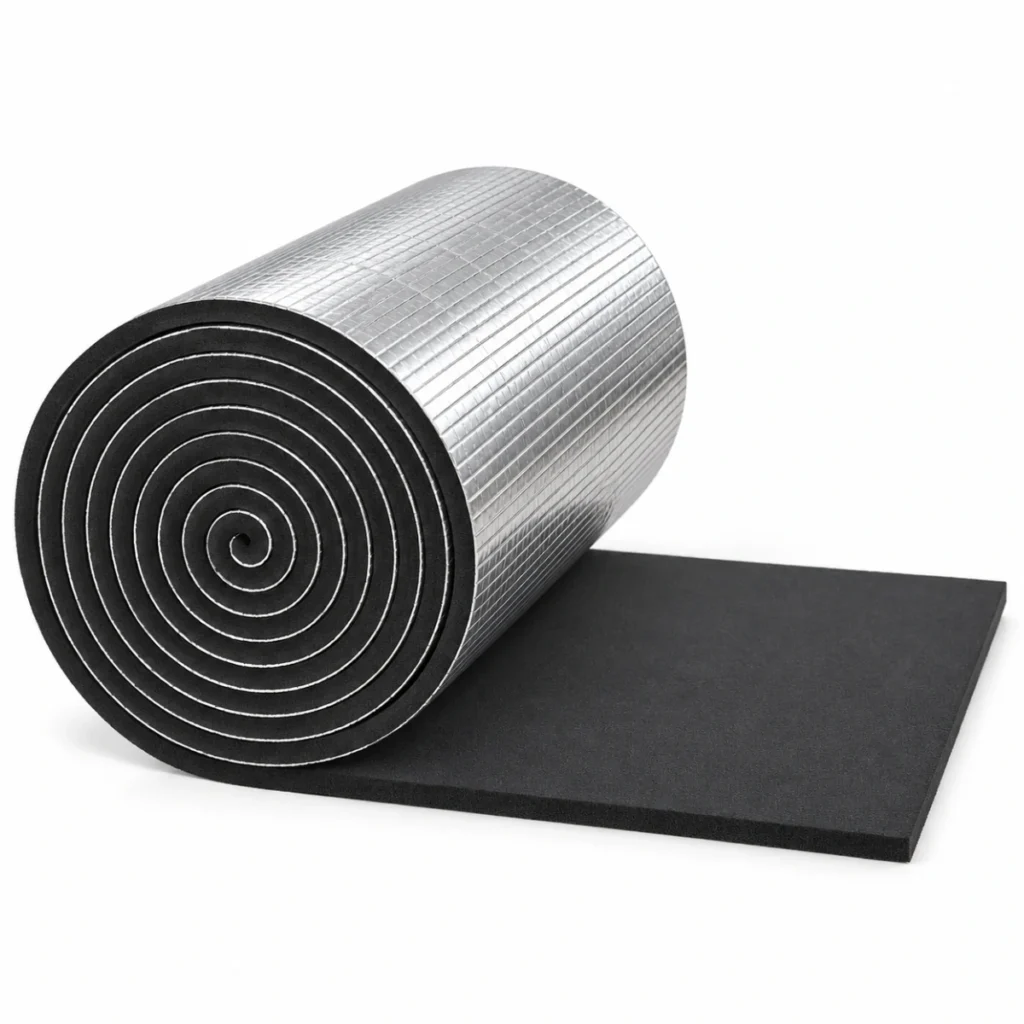

Self-adhesive rolls
Acrylic pressure-sensitive backing; peel the liner and press on.

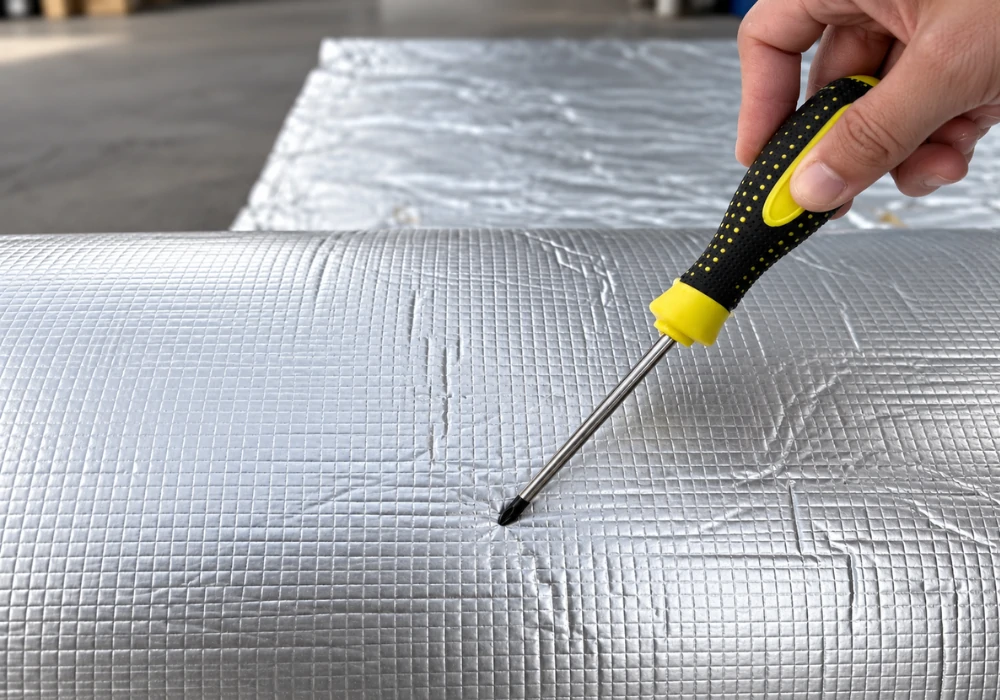

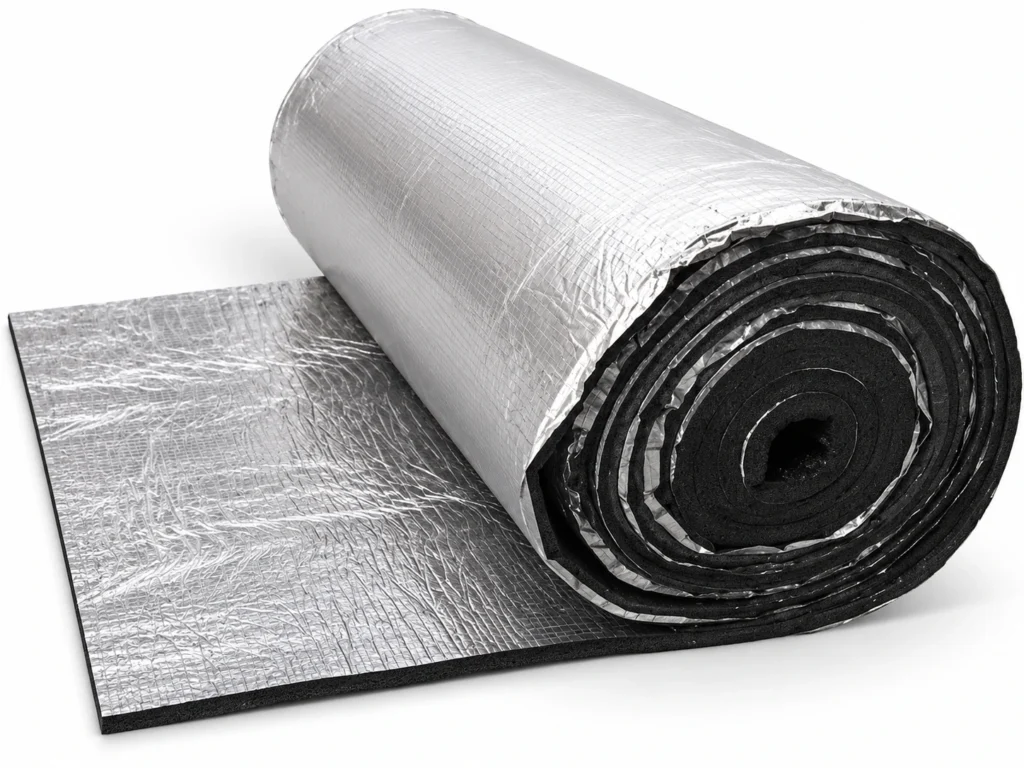

Aluminium foil facing
Optional on both types for a foil-faced surface.
Confirm the thickness, width, length, type and facing for your order.
Applications & installation
Rubber foam insulation
for HVAC ducts and pipes.
Rubber foam rolls are widely used in the HVAC industry to insulate air ducts, chilled-water and refrigerant piping, and air-handling equipment, where the closed-cell structure helps limit heat gain and condensation. They are also used on plumbing and refrigeration lines, tanks and other equipment. Supplied as flexible sheet rather than rigid board, the material can be cut to suit large or irregular surfaces.
Standard rolls are cut to size and bonded with an adhesive suited to the substrate and installation requirements, with the joints sealed. For self-adhesive rolls, check that the surface is clean, dry and suitable for bonding, then peel off the release liner and press the material down progressively.
Aluminium foil tape is the matching accessory for sealing seams and joints.
Discuss rolls and accessories ↗
Glass Wool
Another option for HVAC duct insulation.
View product ↗
Phenolic Insulation Boards
Rigid boards for HVAC ductwork.
View product ↗Order planning
Rubber foam roll lead time
and packing.
- Standard sizes Per order
- Depends on order quantity and the production schedule; confirmed with your quotation.
- Custom sizes Per order
- Depends on order quantity and the production schedule; confirmed with your quotation.
Rolls are packed in plastic film or plastic bags, depending on roll size, thickness, product grade and customer requirements.
Lead times, documentation and packing details are confirmed with the quotation and order.
Before you order
Rubber foam insulation FAQs.
Share the thickness, roll size, type and intended use.
What thicknesses are available?
6–50 mm. All dimensions can be made to order.
What roll sizes are available?
Widths of 1 m or 1.2 m and lengths of 4–30 m, with thicker rolls being shorter. Each roll typically covers 4–36 m².
What is the difference between standard and self-adhesive rolls?
Standard rolls are bonded with a separate adhesive. Self-adhesive rolls have an acrylic pressure-sensitive backing with a release liner, so they press straight onto a clean, dry surface.
Can rolls be supplied with aluminium foil facing?
Yes. Both standard and self-adhesive rolls can be supplied with aluminium foil facing.
What colour are the rolls?
Black. All rolls are supplied in black.
What should I include in an enquiry?
Include the thickness, width, roll length, type, facing, quantity and intended application. If you need thermal or fire performance data, state the values and standards required so they can be confirmed for the supplied product.
