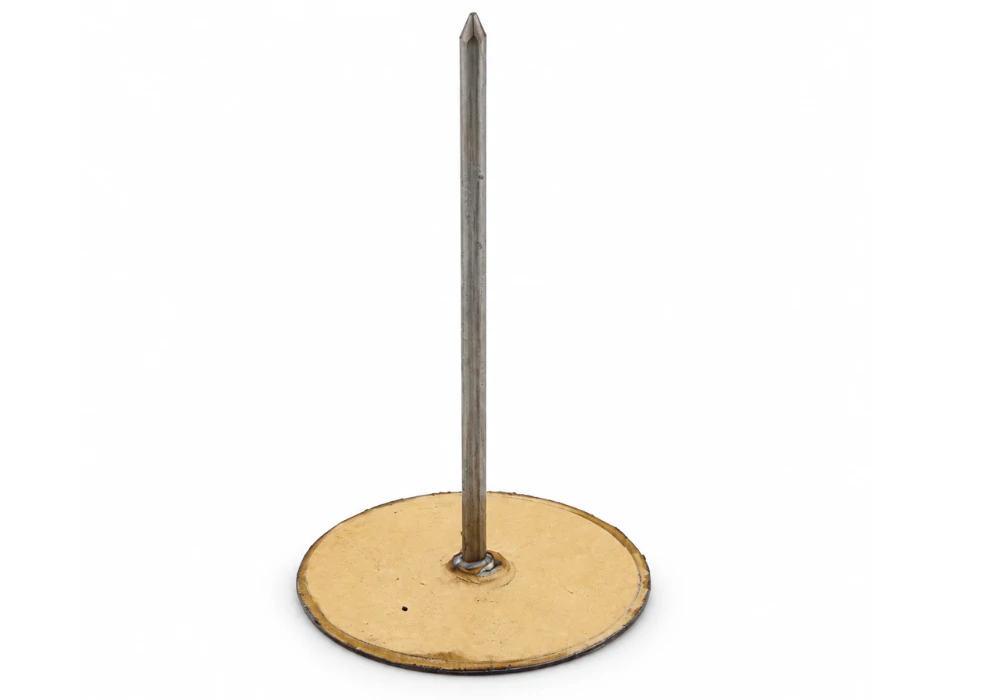

Cup head detail
Confirm the required head diameter and profile for the insulation type. Any special head shape, perforation or surface requirement should be shown on the drawing.

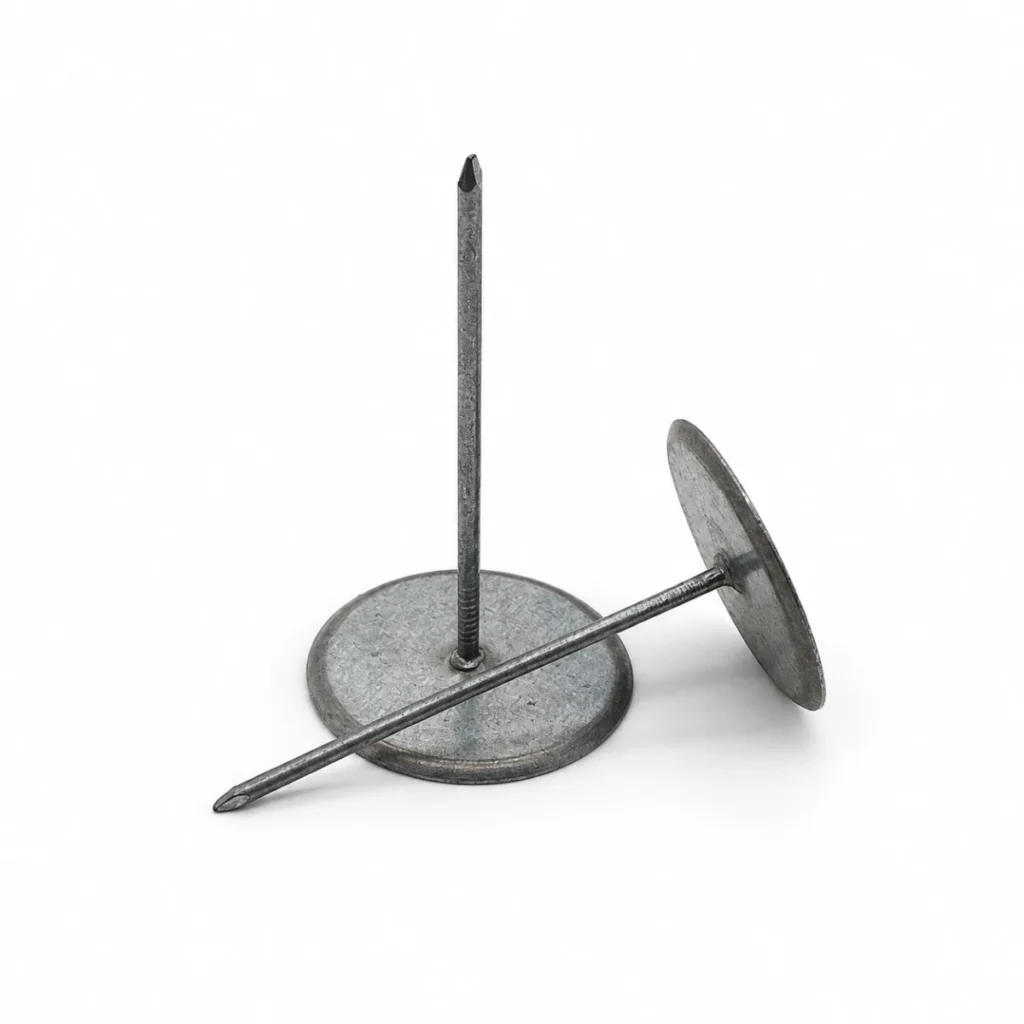

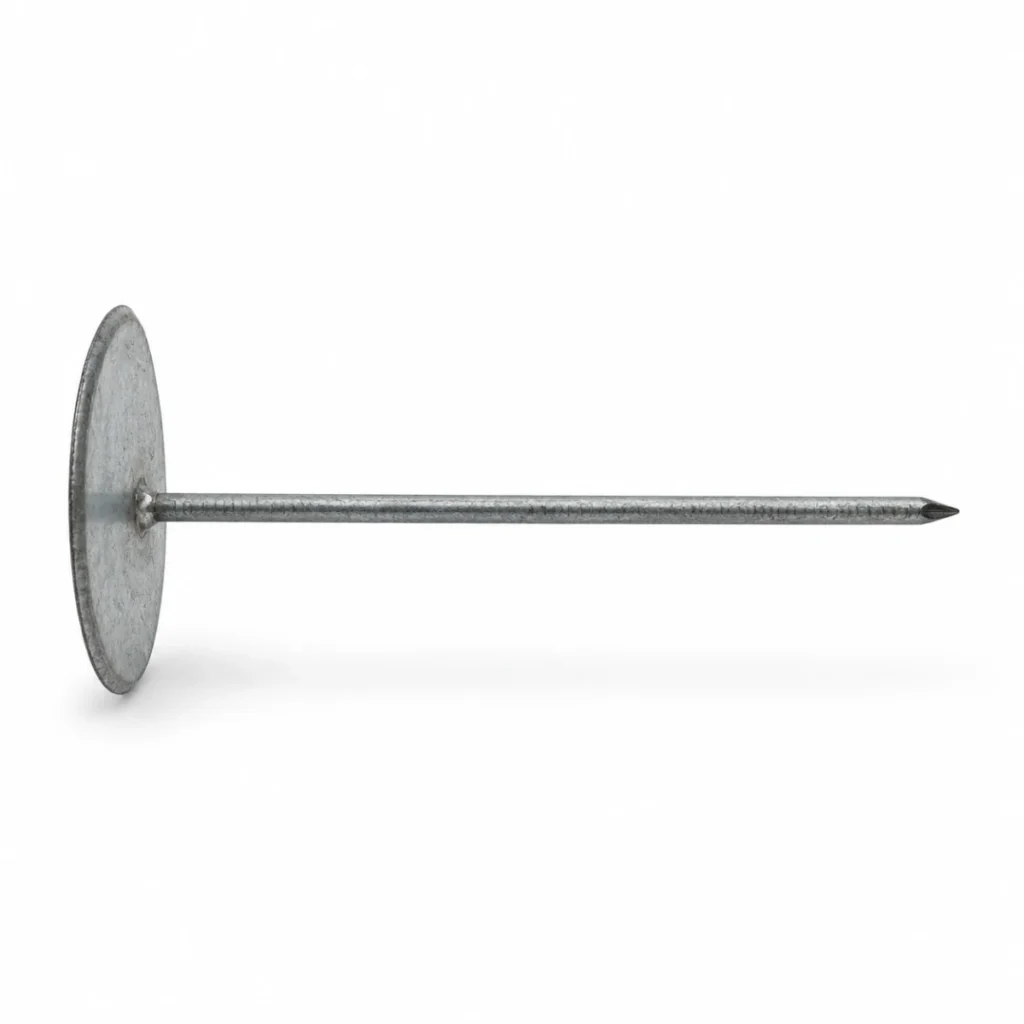

Cup Head Pins
Fasten insulation to sheet metal with a pin and retaining head combined in one component.
The broad cup head holds the insulation while the pin is welded to the metal substrate. Choose the pin material, length, diameter and head size to suit the insulation and installation requirements.
- Diameter
- 1.7 / 1.8 mm
- Length
- 19–300 mm
- Diameter custom
- 2 / 2.3 / 3 mm
Quotation is based on the confirmed material, dimensions, quantity and packaging requirements.
Materials & dimensions
Cup head pin
specifications.
Confirm the pin material, diameter and length together with the cup head diameter. Include the insulation thickness and substrate details so the complete combination can be reviewed before quotation.
Cup Head Pins specifications
| Pin Diameter | 1.7 / 1.8 mm common; 2 / 2.3 / 3 mm custom |
|---|---|
| Pin Length | 19–300 mm |
| Cup Head Diameter | 30 mm |
| Cup Head Thickness | 0.3 mm |
| Cup Head Profile | Solid, shallow cupped profile with a small raised edge |
| Pin Material | Galvanized steel / SS304 / SS316; brass or copper-plated options can be customized |
| Cup Head Material | Follows the selected product material; exact combinations can be confirmed with the order |
| Length Tolerance | 1 mm; tolerance direction agreed with the order |
| Length Measurement | Confirm whether length is measured below the cup head or by another agreed method |
| Weld Point Geometry | Pointed pin tip |

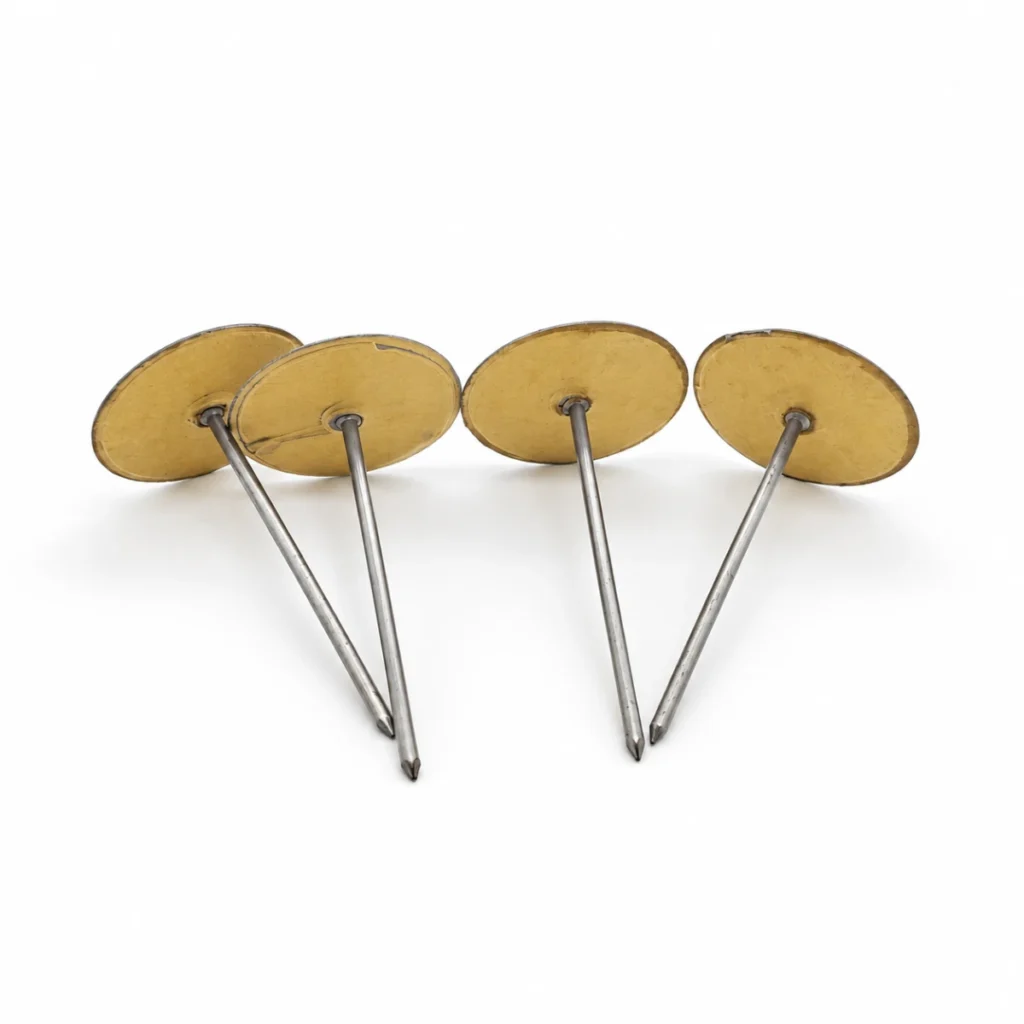

| Insulated Version | Available for all materials; yellow insulation label is the common option, white can be customized by order |
| Common Order Lengths | 30 / 45 / 63 mm |
| Minimum Order Quantity | No fixed MOQ |
Product details
Cup head pin
construction.
The cup head spreads the holding force across the insulation surface. The pin passes through the insulation and is welded to the metal substrate, reducing the need to fit a separate retaining washer during installation.

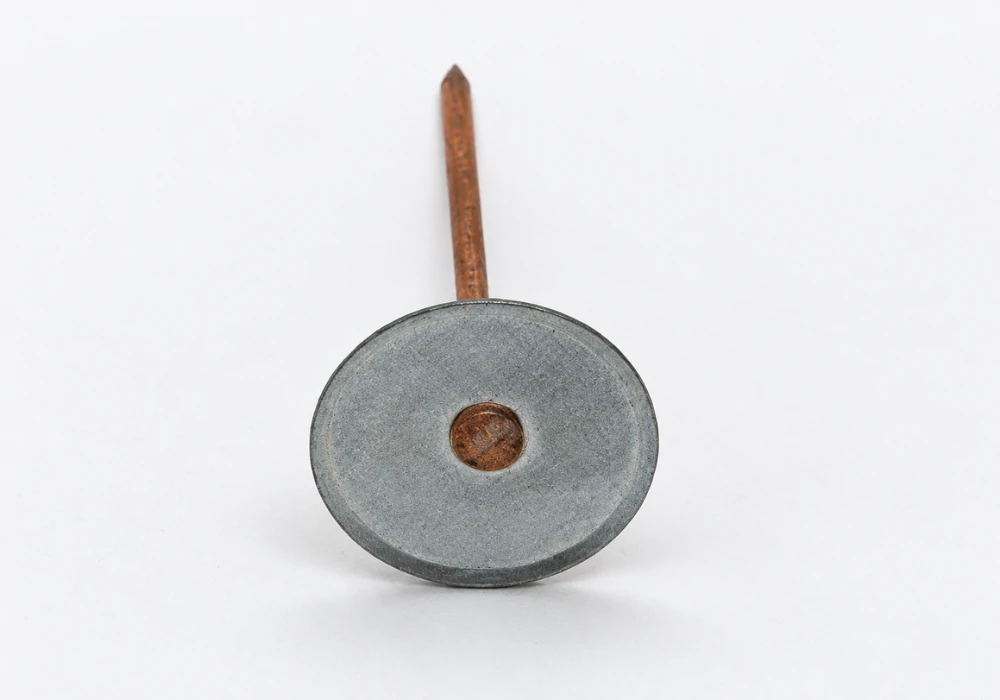

Pin and weld point detail
Pin diameter, length and weld point geometry affect the required welding setup. Confirm these details together rather than selecting the head and pin separately.
Head thickness, head profile and weld point geometry are confirmed against the production specification for each order. Product photographs are for reference only.
Compatibility
Welding cup head pins
to sheet metal.
Cup head pins are used where insulation is fastened directly to a weldable metal surface. Welding performance depends on the pin material and dimensions, substrate material and thickness, surface condition and equipment settings.
Paint, coatings, oxidation or contamination can affect the weld. Validate the actual combination by trial welding before production installation.

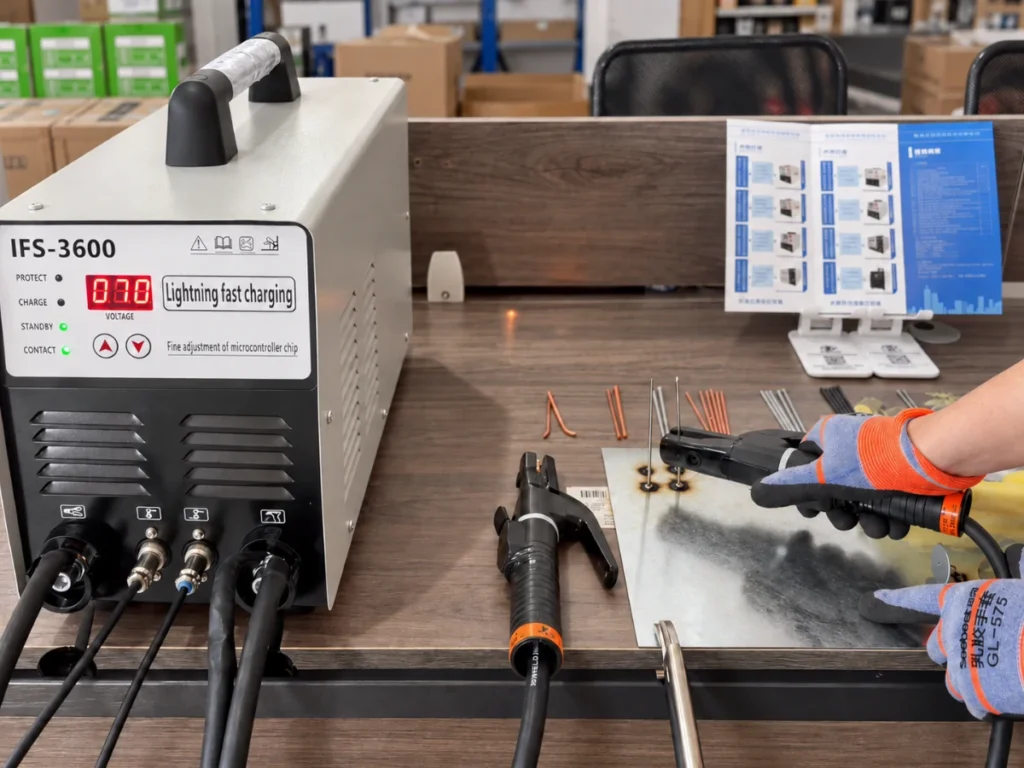

Insulation Pin Welders
Choose the IFS-3600 with a single-gun or dual-gun configuration for your insulation pins.
View product ↗
Welding Guns & Accessories
Match welding guns, clamps, CD stud welding collets and supporting accessories to your IFS-3600 pin welding setup.
View product ↗
CD Weld Pins
Choose the material, dimensions and weld point for your insulation fastening requirements.
View product ↗
Order planning
Cup head pin lead time
and packing.
- Standard specifications Per order
- Depends on order quantity and the production schedule; confirmed with your quotation.
- Custom specifications Per order
- Depends on order quantity and the production schedule; confirmed with your quotation.
- Surface treatment Contact IFS
- Additional time depends on the requirement. Contact IFS to confirm.

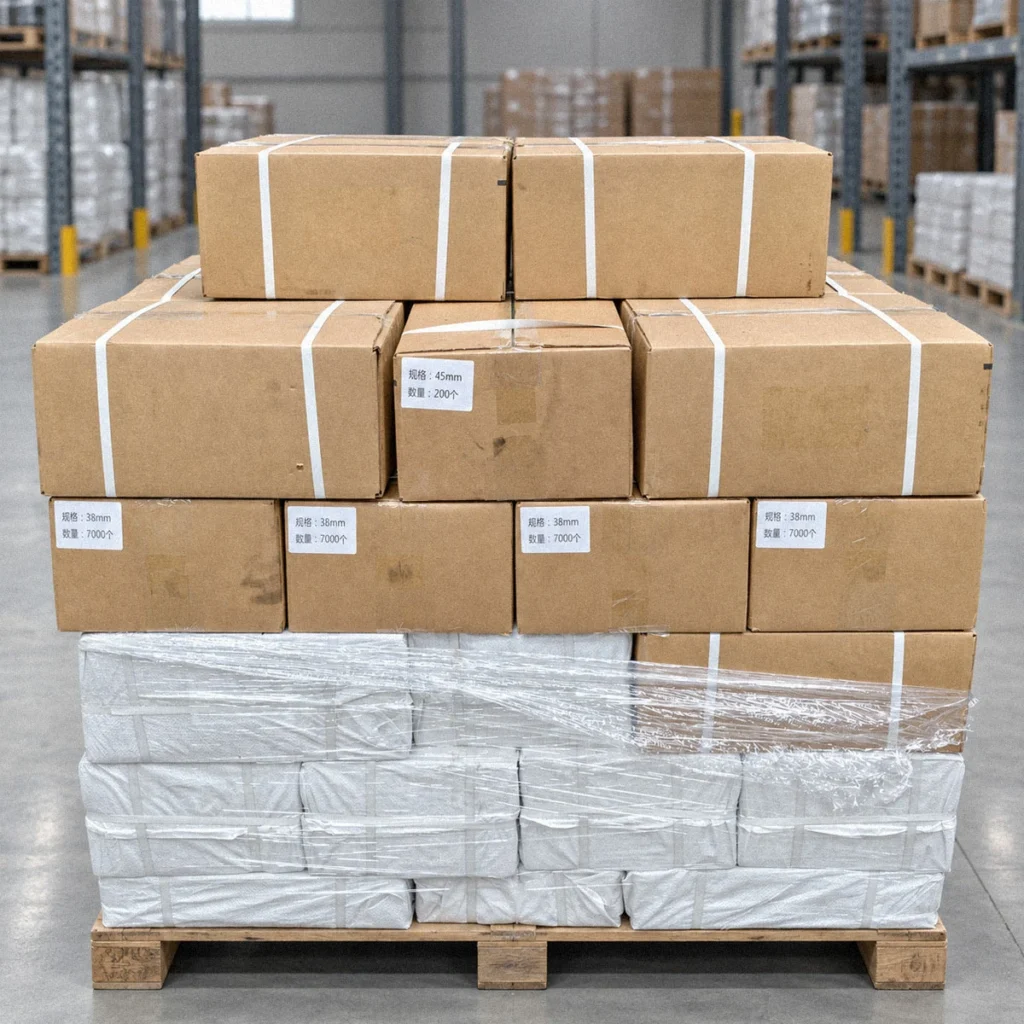

Longer pins and larger head diameters may require different packing arrangements. Confirm carton limits, labelling and pallet or wooden case requirements before production.
Lead times are confirmed with the quotation and order.
Before you order
Cup head pin FAQs.
Share your specification, quantity and any welding or documentation requirements.
How are cup head (cuphead) pins installed?
The insulation is placed first, then the pin is welded through it to the metal surface. The 30 mm cup head holds the insulation, so no separate washer is needed.
Which sizes are available?
Pin diameters of 1.7 and 1.8 mm as standard, with 2, 2.3 and 3 mm made to order, in lengths from 19 to 300 mm. Common order lengths are 30, 45 and 63 mm.

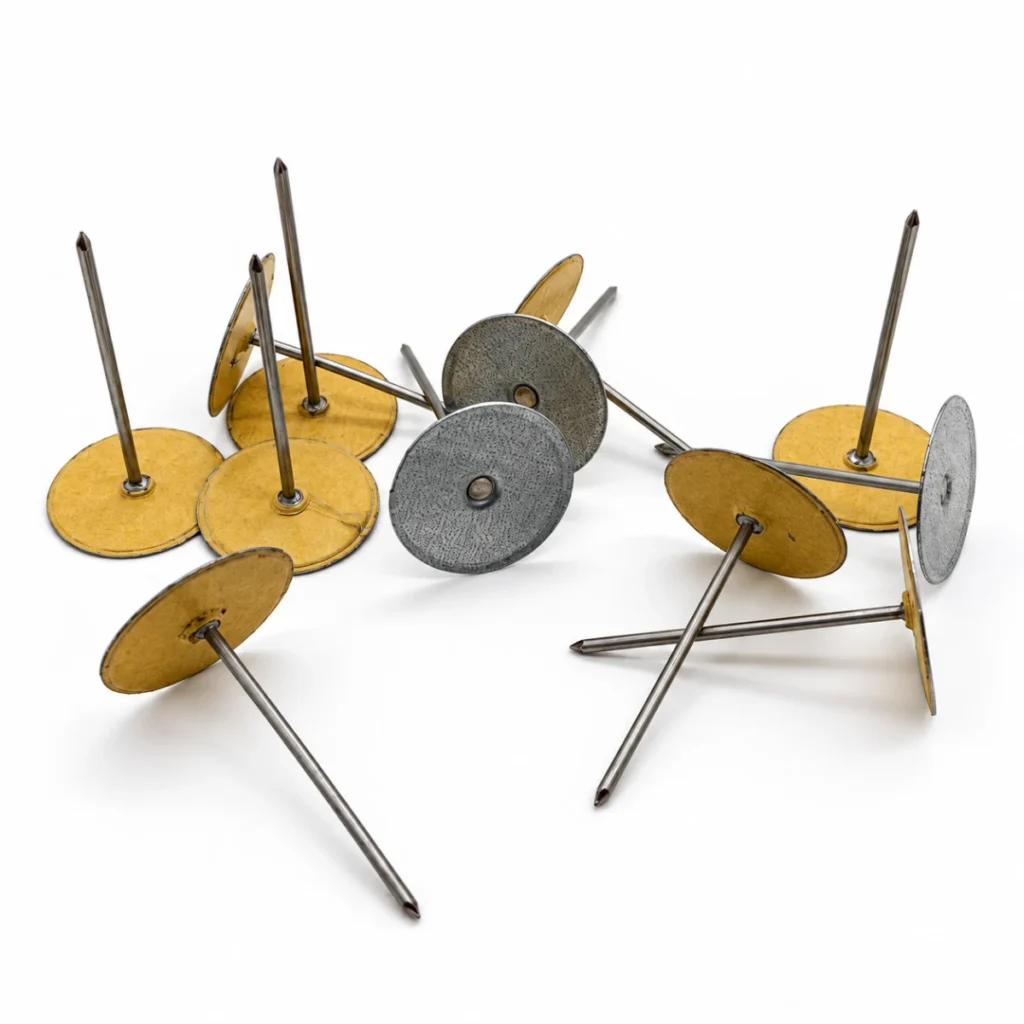

Are insulated cup head pins available?
Yes, in all materials. A yellow insulation label is the common option; white can be made to order.
Is there a minimum order quantity?
No. There is no fixed minimum order quantity for cup head pins.
What should I include in an enquiry?
Send the pin material, pin diameter, pin length, cup head diameter and quantity. Include the insulation thickness, substrate material and a drawing or reference image when available.
